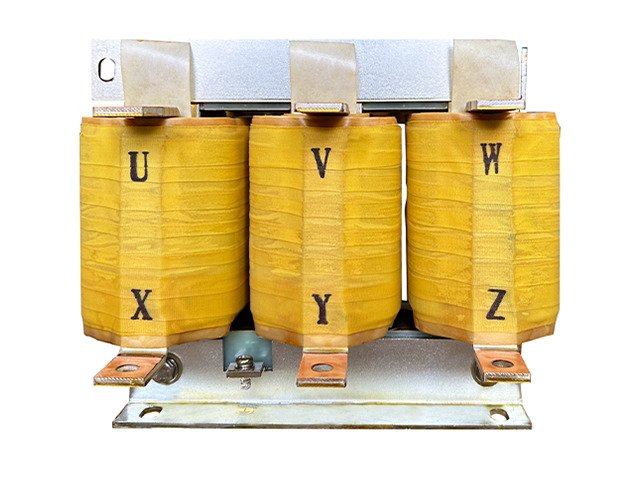

AC Output Reactor
Product Profile:
Installed in the circuits between VFD output side and motors, and applied to compensate the impact of long-line distributed capacitance, restrain the output harmonics of VFD, and lower noise; Reduce the du/dt of motor terminals and the voltage peaks value of load current, to prevent motor insulation from premature aging, motor, and VFD from damaging
Product Applications
Frequency conversion, photovoltaic, wind power generation, renewable energy, measuring instrument, medical equipment, etc
Technical Parameter
| Capacity | 500～2000kVar | Working Efficiency | >96% |
| Rated Voltage | ≤10kV | Temperature Rise | <100K(F)/<125K(H) |
| Rated Current | 5～2000A | Sound Level | <75dB |
| Winding Materials | Copper/ Aluminum | Ingress Protection | Upon customer request |
| Insulation class | F/H | Insulation Resistance | >100 MΩ（DC1000V） |
| Leading Time | 7～30 working days | Package | Wood Crate/ Cardboard Box |
| Dielectric Withstanding Voltage: Depends on system voltage | |||
Features
1. The core limbs are segmented evenly, each core discus is solidified into a whole with the air gap, the winding is wound directly on the core limb, and the top and bottom yokes are closely bonded with the core limb.
2. Vacuum Pressure impregnation (V.P.I) is used, high-temperature cure process, high structural strength, low level of sound little vibration.
3. Good heat dissipation, low temperature rise, low losses, high power factor, high operational efficiency, easy installation, and maintenance, high linearity, reliable operation.
4. It is dampproof, salt fog-proof, mold-proof to ensure long-term reliable operation.
5. It can withstand the electric power in case of sudden short circuit and has good dynamic stability.
6. Excellent property with foil winding structure, small DC resistance, strong resistance.

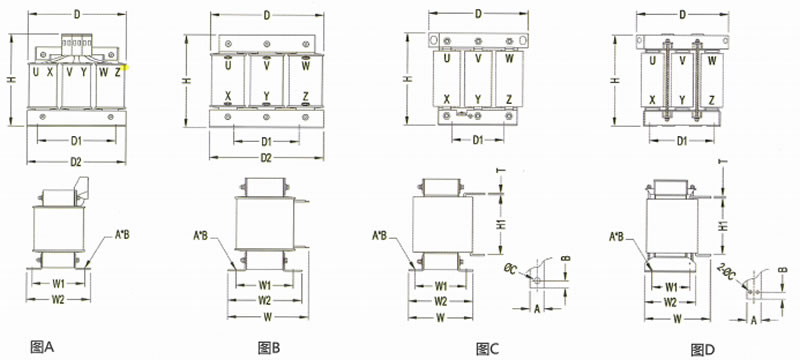

Overall and Installation Dimensions
| 2% Alternating Current Output Reactor | ||||||||||||||||||||
| Product Type | No. | Power (KW) | Rated Current | Inductance Value (mH) | Voltage drop | Insulation Class | Overall Dimensions(±5mm) | Copper Busbar Dimensions | ||||||||||||
| D | D1 | D2 | W | W1 | W2 | H | H1 | A×B | A | A1 | B | T | C | |||||||
| LSDZ02-5A/2.8mH | A | 1.5 | 5A | 2.8 | 2% | F | 110 | 90 | 105 | / | 65 | 80 | 130 | / | 6*12 | / | / | / | / | / |
| LSDZ02-7A/2mH | 2.2 | 7A | 2 | 2% | F | 110 | 90 | 105 | / | 65 | 80 | 130 | / | 6*12 | / | / | / | / | / | |
| LSDZ02-10A/1.4mH | 3.7 | 10A | 1.4 | 2% | F | 110 | 90 | 105 | / | 65 | 80 | 130 | / | 6*12 | / | / | / | / | / | |
| LSDZ02-15A/0.93mH | 5.5 | 15A | 0.93 | 2% | F | 155 | 95 | 150 | / | 60 | 75 | 150 | / | 6*16 | / | / | / | / | / | |
| LSDZ02-20A/0.7mH | 7.5 | 20A | 0.7 | 2% | F | 155 | 95 | 150 | / | 79 | 94 | 150 | / | 6*16 | / | / | / | / | / | |
| LSDZ02-30A/0.47mH | B | 11 | 30A | 0.47 | 2% | F | 155 | 95 | 150 | 150 | 78 | 94 | 130 | / | 6*16 | / | / | / | / | / |
| LSDZ02-40A/0.35mH | 15 | 40A | 0.35 | 2% | F | 155 | 95 | 150 | 150 | 78 | 94 | 130 | / | 6*16 | / | / | / | / | / | |
| LSDZ02-50A/0.28mH | 18.5 | 50A | 0.28 | 2% | F | 195 | 120 | 188 | 150 | 74 | 92 | 160 | / | 8.5*18 | / | / | / | / | / | |
| LSDZ02-60A/0.24mH | 22 | 60A | 0.24 | 2% | F | 195 | 120 | 188 | 150 | 74 | 92 | 160 | / | 8.5*18 | / | / | / | / | / | |
| LSDZ02-80A/0.17mH | 30 | 80A | 0.17 | 2% | F | 195 | 120 | 188 | 150 | 74 | 92 | 160 | / | 8.5*18 | / | / | / | / | / | |
| LSDZ02-90A/0.16mH | 37 | 90A | 0.16 | 2% | F | 195 | 120 | 188 | 150 | 74 | 92 | 160 | / | 8.5*18 | / | / | / | / | / | |
| LSDZ02-120A/0.12mH | C | 45 | 120A | 0.12 | 2% | F | 255 | 180 | 81 | 145 | 76 | 104 | 225 | 140 | 11*18 | 20 | 10 | 5 | φ9 | |
| LSDZ02-150A/0.095mH | 55 | 150A | 0.095 | 2% | F | 255 | 180 | 81 | 155 | 76 | 104 | 230 | 140 | 11*18 | 25 | 13 | 5 | φ11 | ||
| LSDZ02-200A/0.07mH | 75 | 200A | 0.07 | 2% | F | 255 | 180 | 81 | 175 | 96 | 124 | 230 | 140 | 11*18 | 25 | 13 | 5 | φ11 | ||
| LSDZ02-250A/0.056mH | 110 | 250A | 0.056 | 2% | F | 255 | 180 | 81 | 175 | 96 | 124 | 260 | 155 | 11*18 | 25 | 13 | 5 | φ11 | ||
| LSDZ02-290A/0.048mH | 132 | 290A | 0.048 | 2% | F | 287 | 210 | 95 | 180 | 100 | 126 | 275 | 170 | 11*18 | 30 | 15 | 5 | φ12 | ||
| LSDZ02-330A/0.042mH | 160 | 330A | 0.042 | 2% | F | 287 | 210 | 95 | 180 | 100 | 126 | 275 | 170 | 11*18 | 30 | 15 | 5 | φ12 | ||
| LSDZ02-390A/0.036mH | 185 | 390A | 0.036 | 2% | F | 330 | 242 | 106 | 185 | 110 | 140 | 275 | 155 | 12*20 | 30 | 15 | 5 | φ12 | ||
| LSDZ02-490A/0.028mH | 220 | 490A | 0.028 | 2% | F | 330 | 242 | 106 | 215 | 120 | 150 | 305 | 190 | 12*20 | 50 | 22 | 23 | 8 | φ12 | |
| LSDZ02-660A/0.021mH | 300 | 660A | 0.021 | 2% | F | 330 | 242 | 106 | 245 | 135 | 165 | 305 | 190 | 12*20 | 50 | 22 | 23 | 8 | φ12 | |
| LSDZ02-800A/0.017mH | D | 380 | 800A | 0.017 | 2% | F | 395 | 265 | 123 | 260 | 170 | 210 | 390 | 230 | 12*20 | 50 | 22 | 23 | 8 | φ12 |
| LSDZ02-1000A/0.014mH | 450 | 1000A | 0.014 | 2% | F | 395 | 265 | 123 | 260 | 170 | 210 | 390 | 230 | 12*20 | 50 | 22 | 23 | 8 | φ12 | |
| LSDZ02-1250A/0.011mH | 550 | 1250A | 0.011 | 2% | F | 405 | 280 | 130 | 360 | 170 | 210 | 420 | 280 | 12*20 | 60 | 26 | 26 | 12 | φ13 | |
| LSDZ02-1600A/0.0087mH | 630 | 1600A | 0.009 | 2% | F | 405 | 280 | 130 | 360 | 170 | 210 | 420 | 280 | 12*20 | 60 | 26 | 26 | 12 | φ13 | |
| 1% Alternating Current Output Reactor | ||||||||||||||||||||
| Product Type | No. | Power (KW) | Rated Current | Inductance Value (mH) | Voltage Drop | Insulation Class | Overall Dimensions(±5mm) | Copper Busbar Dimensions | ||||||||||||
| D | D1 | D2 | W | W1 | W2 | H | H1 | A×B | A | A1 | B | T | C | |||||||
| LSDZ02-5A/1.4mH | A | 1.5 | 5A | 1.4 | 1% | F | 110 | 90 | 105 | / | 65 | 80 | 130 | / | 6*12 | / | / | / | / | / |
| LSDZ02-7A/1.0mH | 2.2 | 7A | 1 | 1% | F | 110 | 90 | 105 | / | 65 | 80 | 130 | / | 6*12 | / | / | / | / | / | |
| LSDZ02-10A/0.7mH | 3.7 | 10A | 0.7 | 1% | F | 110 | 90 | 105 | / | 65 | 80 | 130 | / | 6*12 | / | / | / | / | / | |
| LSDZ02-15A/0.47mH | 5.5 | 15A | 0.47 | 1% | F | 155 | 95 | 150 | 125 | 60 | 75 | 130 | / | 6*16 | / | / | / | / | / | |
| LSDZ02-20A/0.35mH | B | 7.5 | 20A | 0.35 | 1% | F | 155 | 95 | 150 | 125 | 60 | 75 | 140 | / | 6*16 | / | / | / | / | / |
| LSDZ02-30A/0.23mH | 11 | 30A | 0.23 | 1% | F | 155 | 95 | 150 | 150 | 78 | 94 | 140 | / | 6*16 | / | / | / | / | / | |
| LSDZ02-40A/0.18mH | 15 | 40A | 0.18 | 1% | F | 155 | 95 | 150 | 150 | 78 | 94 | 130 | / | 6*16 | / | / | / | / | / | |
| LSDZ02-50A/0.14mH | 19 | 50A | 0.14 | 1% | F | 155 | 95 | 150 | 150 | 78 | 94 | 130 | / | 6*16 | / | / | / | / | / | |
| LSDZ02-60A/0.12mH | 22 | 60A | 0.12 | 1% | F | 195 | 120 | 188 | 150 | 74 | 92 | 160 | / | 8.5*18 | / | / | / | / | / | |
| LSDZ02-80A/0.087mH | 30 | 80A | 0.087 | 1% | F | 195 | 120 | 188 | 150 | 74 | 92 | 160 | / | 8.5*18 | / | / | / | / | / | |
| LSDZ02-90A/0.078mH | 37 | 90A | 0.078 | 1% | F | 195 | 120 | 188 | 150 | 74 | 92 | 160 | / | 8.5*18 | / | / | / | / | / | |
| LSDZ02-120A/0.058mH | 45 | 120A | 0.058 | 1% | F | 195 | 120 | 188 | 165 | 94 | 112 | 160 | / | 8.5*18 | / | / | / | / | / | |
| LSDZ02-150A/0.047mH | C | 55 | 150A | 0.047 | 1% | F | 255 | 180 | 81 | 170 | 86 | 114 | 230 | 140 | 11*18 | 25 | / | 13 | 5 | φ11 |
| LSDZ02-200A/0.035mH | 75 | 200A | 0.035 | 1% | F | 255 | 180 | 81 | 170 | 96 | 124 | 230 | 140 | 11*18 | 25 | / | 13 | 5 | φ11 | |
| LSDZ02-250A/0.028mH | 110 | 250A | 0.028 | 1% | F | 255 | 180 | 81 | 170 | 96 | 124 | 260 | 155 | 11*18 | 25 | / | 13 | 5 | φ11 | |
| LSDZ02-290A/0.024mH | 132 | 290A | 0.024 | 1% | F | 287 | 210 | 95 | 180 | 100 | 126 | 250 | 150 | 11*18 | 30 | / | 15 | 5 | φ12 | |
| LSDZ02-330A/0.021mH | 160 | 330A | 0.021 | 1% | F | 287 | 210 | 95 | 180 | 105 | 131 | 250 | 150 | 11*18 | 30 | / | 15 | 5 | φ12 | |
| LSDZ02-390A/0.018mH | 185 | 390A | 0.018 | 1% | F | 287 | 210 | 95 | 180 | 100 | 131 | 275 | 170 | 11*18 | 30 | / | 15 | 5 | φ12 | |
| LSDZ02-490A/0.014mH | 220 | 490A | 0.014 | 1% | F | 330 | 242 | 106 | 210 | 110 | 140 | 305 | 190 | 12*20 | 50 | 22 | 23 | 8 | φ12 | |
| LSDZ02-660A/0.011mH | 300 | 660A | 0.011 | 1% | F | 330 | 242 | 106 | 245 | 125 | 155 | 305 | 190 | 12*20 | 50 | 22 | 23 | 8 | φ12 | |
| LSDZ02-800A/0.0087mH | D | 380 | 800A | 0.009 | 1% | F | 395 | 265 | 123 | 250 | 170 | 210 | 390 | 230 | 12*20 | 50 | 22 | 23 | 8 | φ12 |
| LSDZ02-1000A/0.007mH | 450 | 1000A | 0.007 | 1% | F | 395 | 265 | 123 | 250 | 170 | 210 | 390 | 230 | 12*20 | 50 | 22 | 23 | 8 | φ12 | |
| LSDZ02-1250A/0.0058mH | 550 | 1250A | 0.006 | 1% | F | 405 | 280 | 130 | 350 | 170 | 210 | 420 | 280 | 12*20 | 50 | 26 | 26 | 12 | φ13 | |
| LSDZ02-1600A/0.0043mH | 630 | 1600A | 0.004 | 1% | F | 405 | 280 | 130 | 350 | 170 | 210 | 420 | 280 | 12*20 | 50 | 26 | 26 | 12 | φ13 | |
