What Are the Special Protection Requirements for Explosion‑Proof Transformers?

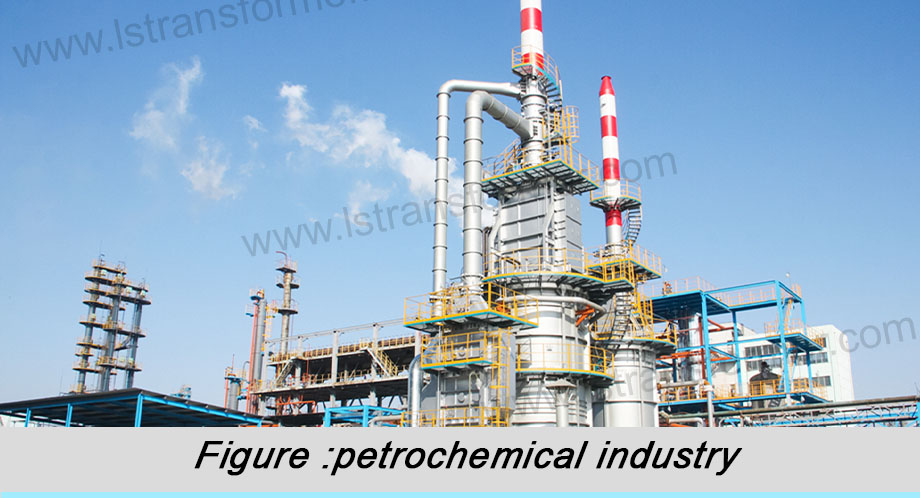

In high-risk industries such as petrochemicals, mining, and pharmaceutical manufacturing, explosion-proof transformers are core equipment for ensuring safe power supply. These special environments are often laden with flammable gases, vapors, or dust – where even a tiny electrical spark can trigger a catastrophic explosion. Therefore, explosion-proof transformers must meet multiple stringent protection requirements far exceeding those of standard products to build a robust safety barrier.

Content

1. Enclosure Protection Rating (IP Code): Keeping External Hazards Out

Core Requirement: In explosive atmospheres, the ingress of external dust or water into the equipment can lead to two critical risks:

•Dust Accumulation & Overheating: Conductive dust settling on windings or conductive parts can create abnormal current paths, causing localized overheating due to the Joule heating effect. This temperature rise might exceed the Minimum Ignition Temperature (MIT) of the explosive dust.

•Moisture-Induced Short Circuits / Sparks: Water or high humidity degrades insulation performance, leading to phase-to-phase short circuits or ground faults, generating sparks with sufficient energy to ignite an explosive mixture.

Special Requirements:

•IP65:Requires complete protection against dust ("6") and protection against low-pressure water jets from any direction ("5"). This is achieved through precision-engineered sealing gaskets, specialized sealants, and rigid housing structures that physically block dust and water.

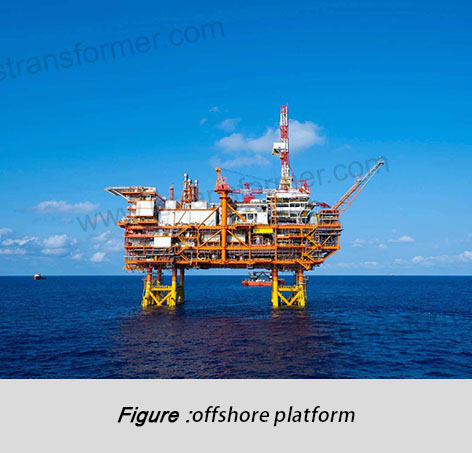

•IP66/IP67: For harsher environments like offshore platforms, wash-down areas, or extremely dusty locations:

–IP66: Protects against powerful water jets. The enclosure needs enhanced structural rigidity and complex multi-layer sealing designs.

–IP67: Protects against temporary immersion. Relies on high-pressure sealing systems and specialized welding/casting processes.

Table 1: Common IP Ratings for Explosion-Proof Transformers

2. Explosion Protection Types & Levels: Controlling Internal Ignition Sources

Merely isolating the enclosure is insufficient. Explosion-proof transformers must also prevent internal ignition sources fundamentally, governed by standards likeIEC 60079 series or North American NEC 500/505.

Core Requirement:

 Internal transformer faults or normal operation can generate energy capable of igniting the surrounding atmosphere.

Special Requirements:

Typically use one or a combination of these methods:

•Flameproof Enclosure (Ex d):

–Principle: Contains an internal explosion. The robust housing withstands the pressure and prevents transmission to the outside via cooled flame paths.

–Application: Zones 1/2 (Gases), Zones 21/22 (Dust).

•Increased Safety (Ex e):

–Principle: Enhances measures to prevent sparks, arcs, or hot surfaces during normal operation.

–Application: Zones 1/2, Zones 21/22. Suitable for components not producing sparks in normal service.

•Pressurized Enclosure (Ex p):

–Principle: Maintains protective gas pressure inside the enclosure to prevent entry of external hazardous atmosphere.

–Application: High-power transformers, Zones 1/2, Zones 21/22.

•Encapsulation (Ex m):

–Principle: Potentially incendive parts are encapsulated in resin, preventing contact with the explosive atmosphere and suppressing spark energy.

–Application: Small transformers/components, Zones 1/2, Zones 21/22.

3. Temperature Class (T‑Class): Strictly Limiting Surface Temperatures

Core Requirement: Hot surfaces from operation can act as an ignition source.

Special Requirement:

•Temperature Classification (T-Code): Maximum surface temperature must be below the Minimum Ignition Temperature of specific gases/dust present.

•Implementation:Enhanced cooling design, power density control, temperature monitoring, high-grade insulating materials.

Table 2: Relationship between Temperature Class (T-Class) and Ignition Temperatures

4. Materials & Construction: Ensuring Durability & Reliability

Core Requirement: Harsh environments demand materials resistant to corrosion, impact, and extreme conditions.

Special Requirements:

•Corrosion-Resistant Housing:Stainless steel or coated carbon steel.

•Stable Sealing Materials: Gaskets made from Fluorocarbon Rubber (FKM/Viton®) or Silicone Rubber (VMQ).

•Reinforced Mechanical Structure: Robust design verified to withstand internal explosions and external impacts.

•Special Insulation Systems:High thermal class materials and impregnation processes ensure stability.

5. Certification & Marking: Passport to Global Markets

Core Requirement:

Mandatory certifications prove compliance with regional regulations.

Special Requirements:

•Essential International Certifications:

–ATEX (EU): Mandatory. Requires specific Ex marking.

–IECEx (International): Globally recognized system based on IEC standards.

–North American (e.g., UL, CSA): Compliance with NEC/CEC standards, using Class/Division or Zone systems.

•Clear & Complete Marking:Nameplate must include full details for correct application in designated hazardous areas.

Global Selection & Application Guide

When selecting an explosion-proof transformer, precisely match it to the hazardous area classification, specific flammable substances present, environmental corrosivity, and installation specifics. Understanding the stringent IP ratings, explosion-protection principles, temperature class limits, and material/certification roles is crucial.

While global standards provide the framework, always verify mandatory regional certification requirements. Choosing manufacturers with comprehensive international certifications, strong technical expertise, and support is fundamental for ensuring electrical safety and preventing disasters in high-risk locations. Investing in correctly rated explosion-proof transformers is the ultimate safeguard for lives and operational continuity.
