The Harmful Effects of Harmonics on Electrical Systems

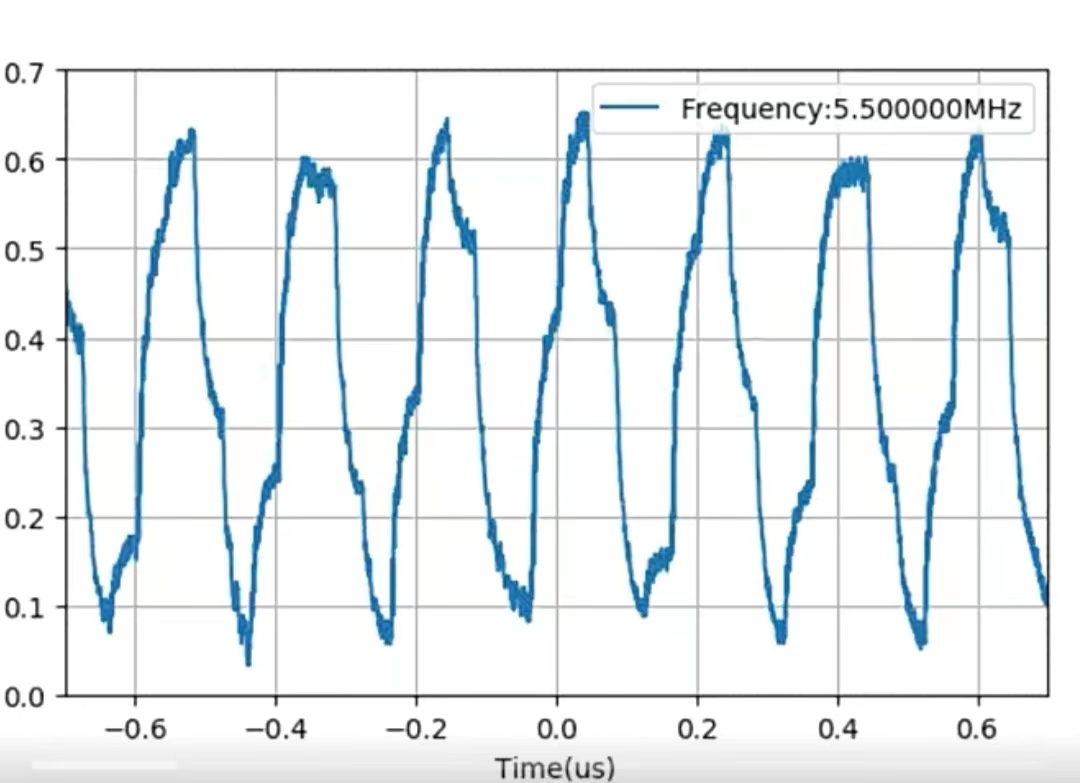

Harmonics are an unwanted distortion of the normal waveform of an electrical signal, caused by the presence of frequencies that are not part of the fundamental frequency of the system. In an electrical system, harmonics can have various harmful effects, both on the system itself and on connected equipment. One of the most significant harmful effects of harmonics is an increase in the level of voltage distortion. This can result in overheating of equipment, leading to damage or failure. In particular, the increased levels of h armonic currents can cause transformers and other equipment to overheat, leading to a shorter lifespan. Another harmful effect of harmonics is the generation of high-frequency noise in the system. This noise can interfere with the proper operation of sensitive electronic equipment, leading to data errors or equipment failure.
Harmonics can also cause power quality issues, such as voltage flicker, voltage sag, and voltage swell. These issues can cause disruptions to the operation of equipment, leading to downtime and lost productivity. In addition to the direct effects on equipment and systems, harmonics can also cause issues with power distribution networks. The increased levels of harmonic currents can cause a voltage drop across the network, leading to power losses and reduced efficiency.
To mitigate the harmful effects of harmonics, various techniques can be used. These include the use of filters, which remove harmonics from the system, and the use of harmonic traps, which redirect the harmonics to a different part of the system where they can be safely dissipated.
In conclusion, harmonics can have a range of harmful effects on electrical systems, including equipment failure, power quality issues, and reduced efficiency. It is important to take steps to mitigate these effects to ensure the safe and efficient operation of electrical systems.
