What is the influence of the split winding structure on the power supply of other branches?

The influence of the split winding structure on the power supply of other branches is mainly shown in the following aspects:

Content

l Improve the power supply reliability

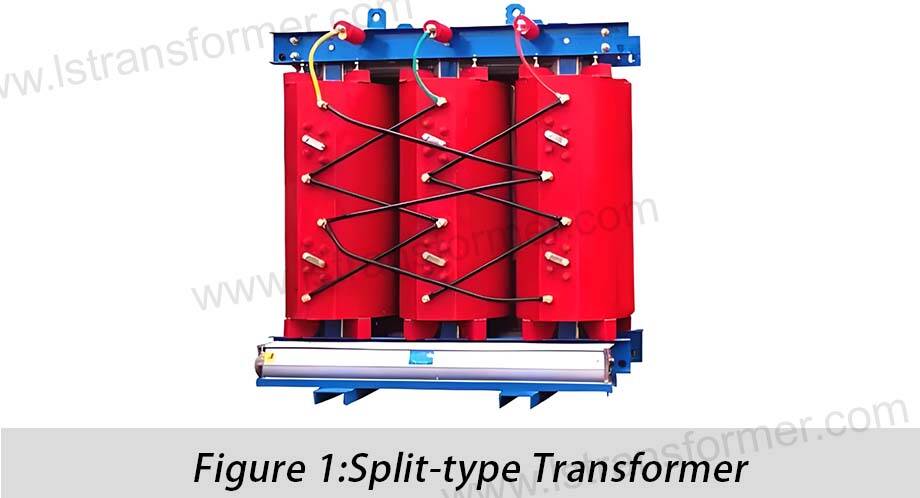

The split winding design of the split transformer makes each branch branch electrically independent of each other. Therefore, when one branch fails, the other branches can continue to operate normally and will not be directly affected by the fault branch. This structural feature significantly improves the reliability of power supply, ensuring that critical equipment or systems can supply power in the face of a single failure.

l Enhanced voltage stability

Due to the high impedance characteristics between the split windings, the voltage change of one branch has less impact on the voltage of the other branch when a short circuit or other faults occurs. This means that the voltage of the other branches can remain relatively stable, thus maintaining the voltage stability of the whole system.

l Load distribution flexibility

The split-winding structure allows each branch to bear the load independently according to the actual requirements. This design provides the flexibility in load distribution, allowing the power system to better adapt to the operational requirements of different load conditions. At the same time, it also helps to balance the system load and optimize the use of power resources.

l Fault isolation and protection

The split winding structure also performs in fault isolation and protection. When a branch fails, the protection device can act quickly to isolate the fault branch from the system, thus preventing the fault from expanding and protecting the other branches from damage. This rapid and effective fault isolation mechanism is crucial to maintaining the overall safety and stable operation of the power system.

In Summary

In conclusion, the split winding structure significantly improves the power supply quality and the overall performance of other branches by improving the reliability, enhancing voltage stability, providing load distribution flexibility, and realizing fault isolation and protection.
