Why Do Reactor Core Losses Exceed Standards?

—Complete Guide to Low-Loss Nanocrystalline Alloy Materials

According to the International Energy Agency (IEA), global power systems lose 21 billion kWh annually due to reactor core overheating—equivalent to the yearly electricity consumption of 24 million households. In the era of high-frequency, high-power electronics, traditional magnetic core materials have hit performance ceilings. This article reveals how nanocrystalline alloys, through atomic-level structural innovation, are revolutionizing low-loss reactor technology.

Content

1. Three Sources of Core Loss & Material Performance Comparison

● Core Loss Mechanisms Explained

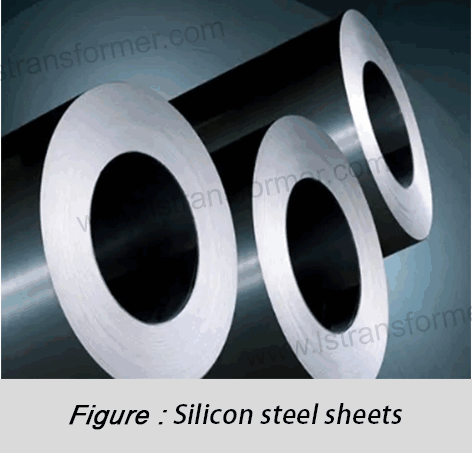

(1) Hysteresis Loss: Like Repeated Friction Generating Heat Magnetic domain flipping in alternating fields consumes energy as internal "resistance." Traditional silicon steel requires high energy for domain flipping (coercivity: 80–120 A/m), akin to dragging heavy objects on rough terrain.

(2) Eddy Current Loss:"Short-Circuit" Heating from Circular Currents Magnetic field variations induce circular currents. Thicker materials and lower resistivity amplify these currents. For example, 0.3mm silicon steel exhibits 3x higher eddy current loss than amorphous alloys.

(3) Anomalous Loss:Hidden Costs of Micro-Defects Material impurities and stress concentrations cause localized field distortions, contributing 15%–20% of total silicon steel losses.

● Key Material Performance Comparison

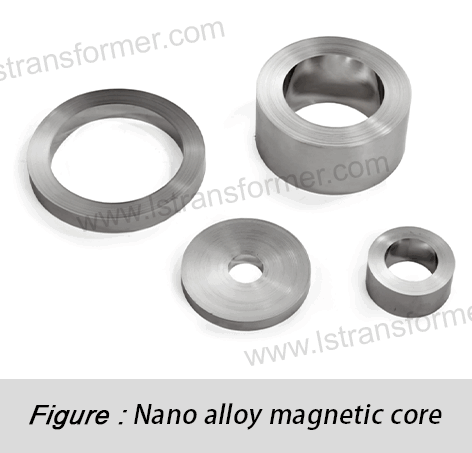

2. Four Mechanisms Behind Nanocrystalline Alloys’ Ultra-Low Loss

● Magnetic Domain Optimization via Nanoscale Grains: 83% Lower Hysteresis Loss Silicon steel’s 100 μm domains require flipping across grain boundaries, like traversing mountainous terrain. Nanocrystalline alloys shrink domains to 5–10 nm (1/10,000th of silicon steel), enabling "nanoscale straight paths" for magnetization.

(1) Test Data: Hitachi Metals reports nanocrystalline hysteresis loss at 7 W/kg (1T field), vs. 41 W/kg for silicon steel.

(2) Engineering Impact: Annual energy savings reach 18,000 kWh per ton of core at 10kHz—equivalent to 6 U.S. households’ yearly consumption.

● Eddy Current Fragmentation Technology:

72% Loss Reduction Nanocrystalline 3D grids split macroscopic eddy currents into microscopic loops, achieving:

(1)Extended Current Paths: Eddy current paths lengthen from millimeters to meters, increasing resistive losses.

(2)Distributed Heat Generation: Temperature gradients drop from 80°C/cm to 15°C/cm, preventing hotspots.

(3)High-Frequency Compatibility: At 100kHz, losses are 22 W/kg (1/12th of silicon steel), enabling compact high-frequency reactors.

Case Study: Tesla’s V4 Supercharger reduced reactor volume by 60% and limited temperature rise to <40K under 150kHz operation.

● Ultra-Thin Ribbon Synergy:

20x Insulation Resistance Boost 14μm ribbons with 50nm SiO₂ coating achieve:

(1)Interlayer resistivity >10 MΩ (vs. IEC 60404-8’s 1 MΩ requirement), cutting leakage currents by 80%.

(2)Eddy current loss share drops from 45% to 12%, pushing total losses below 20 W/kg.

(3)Mechanical strength of 980 MPa (2.3x amorphous alloys) with <0.1% breakage. Application: ABB SolarEdge inverters improved reactor efficiency from 97.2% to 99.1%.

● Stress Self-Elimination:

>95% Anomalous Loss Elimination 550°C magnetic annealing reduces residual stress from 100 MPa to <5 MPa:

Case Study: VAC’s traction reactors for Siemens showed ±1.2% loss deviation after 3 years under railway vibrations (vs. ±8–12% for traditional materials).

3. Global Engineering Cases & Supply Chain

● Siemens Offshore Wind Converter Upgrade

(1)Challenge:12kV reactor with amorphous core faced 82°C temperature rise at 10kHz (exceeding IEC 60076-11 limits).

(2) Nanocrystalline Solution:

● Global Supply Chain Overview

In Summary

Conclusion Nanocrystalline alloys are redefining reactor design rules: By slashing losses to 1/5th of traditional materials, they enable 150kHz high-frequency reactors. Companies should adopt quality control systems with grain size analysis (ASTM E112) and loss spectrum testing (IEC 61000-4-7) to embrace the high-frequency power electronics era.
