Why Does Your Factory’s Electricity Bill Remain Sky-High?

—Hidden Costs of Transformer Power Loss Explained

Industrial electricity bills often hide a critical culprit: transformer power loss, which accounts for 20%-30% of energy costs. According to the International Energy Agency (IEA), global industrial transformers waste over 200 billion kWh annually—equivalent to Germany’s total yearly consumption. Yet, many factory managers overlook the root causes and solutions. This article reveals how to tackle transformer inefficiencies and slash your energy expenses.

Content

1. No-Load Losses: The Silent Energy Drain

No-load losses occur when transformers run idle, primarily due to core losses in the iron core. These include:

•Hysteresis Loss: Caused by magnetic reversal in the core. Formula:

kh= material coefficient,f = frequency,B = magnetic flux density.

•Eddy Current Loss:Generated by circulating currents in the core. Formula:
)
t = core thickness. Modern laser-scribed steel reduces this by 30%-40%.

2. Load Losses: The Hidden Cost of Overworking Transformers

Load losses stem from resistive heating in windings (losses). Key factors:

•Resistivity: Aluminum windings have 1.68× higher resistance than copper.

•Temperature: Resistance rises by 0.4% per °C. Cooling systems (e.g., liquid cooling) can stabilize temperatures below 55°C, cutting losses by 4% per 10°C reduction.

•Design Innovations:Foil windings reduce AC resistance by 15%, while Litz wires minimize eddy currents.

Critical Load Rate: Operating above 75% load accelerates losses faster than productivity gains, hurting profitability.

3. 3D Strategy to Cut Losses: Tech Upgrades & Smart Management

•Material Innovations

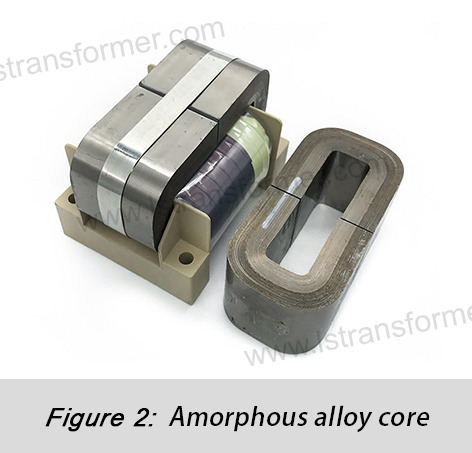

•Amorphous Metal Transformers (AMDT):

Reduce hysteresis loss by 75%-85% and eddy current loss by 70%-90% vs. traditional silicon steel (CRGO).

Case Study: A 1000kVA AMDT saves 6,132 kWh/year (¥4,905/year at ¥0.8/kWh), with a 2-year payback despite higher upfront costs.

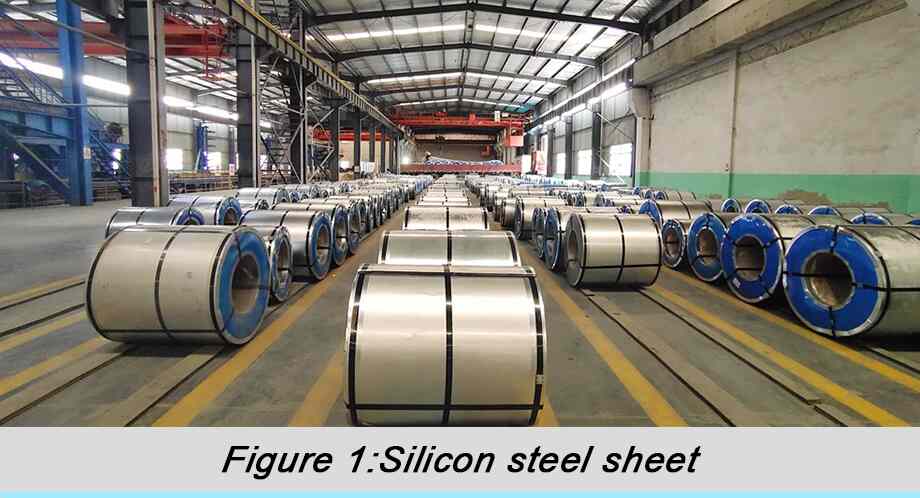

•Laser-Scribed Silicon Steel: Reduces hysteresis loss by 25%-35% at minimal cost (+8%-12%).

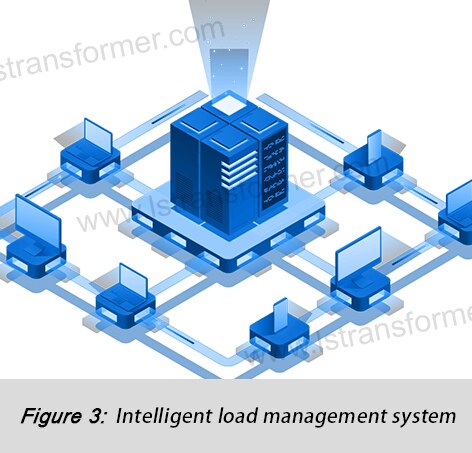

•Smart Load Management

•Use systems like Schneider PowerLogic™ to optimize load rates (50%-70% ideal range) and integrate cooling technologies (ONAF fans, liquid cooling).

•Predictive Maintenance

•Monitor insulation aging and hotspots via DGA oil analysis and fiber-optic sensors (±1°C accuracy).

•Apply the Arrhenius Equation for lifespan prediction:
)
This enables 6-month failure warnings, preventing costly downtime.

In Summary

By adopting amorphous metal transformers, foil windings, smart load control, and predictive maintenance, factories can boost efficiency by 25%-35% with a 2–5-year ROI. As carbon pricing and ESG regulations tighten, upgrading transformers is no longer optional—it’s essential for slashing electricity bills and staying competitive.
