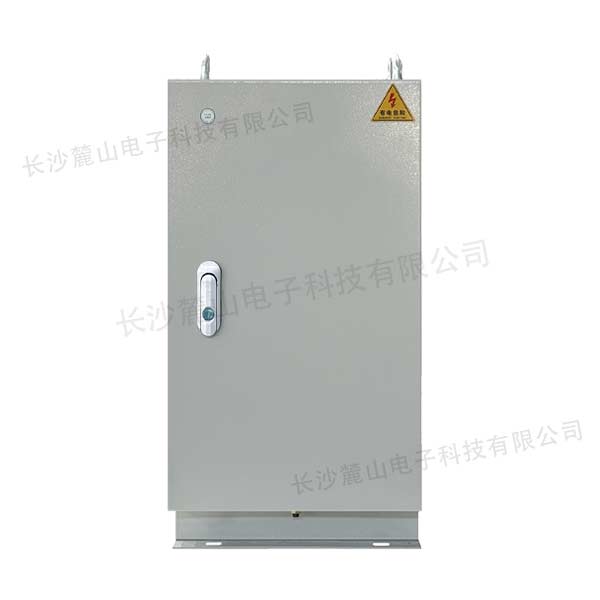

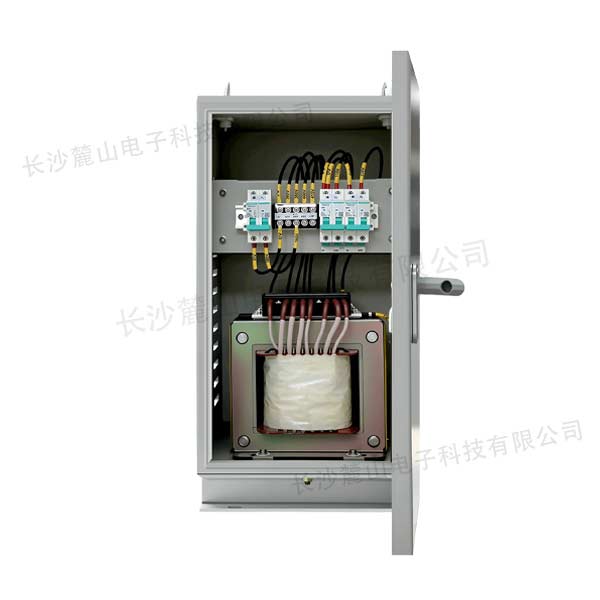

WD45-JX-3.5kVA 360V&400V-110V&220V
Product Profile:
The single-phase power transformer is primarily used to convert single-phase AC voltage to meet the specific voltage requirements of various electrical devices. Operating on the principle of electromagnetic induction, it receives input voltage through the primary winding and generates an appropriate output voltage in the secondary winding.
Product Applications
The single-phase power transformer is;widely applied in NC machine tools, office automation equipment, computers, television cameras, and audio equipment.
Technical Parameter
| Rated capacity | 25VA~30kVA | Work efficiency | ≥90% |
| Rated voltage | ≤3300V | Insulationresistance | >100MΩ(DC1000V) |
| Insulation class | F/H/B | Noise | ≤68dB@1m |
| Winding material | Copper/Aluminum | Rated frequency | 50/60Hz |
| Dielectric strength | Upon customer’s request | ||
| Impedance | Upon customer’s request | ||
| Standards | GB/T15290-2012 or customized | ||
Features
◉Premium Materials:The iron core is made of high-permeability silicon steel, ensuring low losses, minimal noise, and excellent structural performance. The windings are manufactured using high-quality copper or aluminum conductors, offering high cost-effectiveness.
◉Easy Installation:The transformer is easy to install and maintenance-free. It can be customized for specific environmental conditions and appearance based on customer requirements.
Power Transformer Dimensions
| Product Type | Insulation Class | Capacity（VA） | Overall Dimensions（Max） | Installation Dimensions(±2) | Weight | |||
| W | D | H | x | d | ||||
| tdA-6-48 | A | 6 | 76 | 40 | 44 | 62 | Φ4.2*7 | 0.31kg |
| tdA-8-48 | A | 8 | 76 | 44 | 44 | 62 | Φ4.2*7 | 0.36kg |
| tdA-10-48 | A | 10 | 76 | 50 | 44 | 62 | Φ4.2*7 | 0.45kg |
| tdA-12-57 | A | 12 | 85 | 42 | 52 | 70 | Φ4.5*8 | 0.45kg |
| tdA-15-27 | A | 15 | 85 | 46 | 52 | 70 | Φ4.5*8 | 0.50kg |
| tdA-20-57 | A | 20 | 85 | 52 | 52 | 70 | Φ4.5*8 | 0.65kg |
| tdA-25-60 | A | 25 | 87 | 60 | 54 | 73 | Φ4.5*8 | 0.73kg |
| tdA-30-66 | A | 30 | 96 | 60 | 59 | 82 | Φ4.5*8 | 0.85kg |
| tdA-35-66 | A | 35 | 96 | 64 | 59 | 82 | Φ4.5*8 | 0.95kg |
| tdA-40-66 | A | 40 | 96 | 68 | 59 | 82 | Φ4.5*8 | 1.00kg |
| Product Type | Insulation Class | Capacity（VA） | Overall（Max） | Installation(±2) | Weight | ||||
| W | D | H | X | y | d | ||||
| tdA-25-76 | A | 25 | 78 | 79 | 95 | 52 | 60 | Φ4.5 | 1.1kg |
| tdA-50-76 | A | 50 | 78 | 84 | 95 | 52 | 65 | Φ4.5 | 1.3kg |
| tdA-75-76 | A | 75 | 78 | 94 | 95 | 52 | 75 | Φ4.5 | 1.6kg |
| tdA-100-86 | A | 100 | 88 | 87 | 103 | 62 | 75 | Φ4.5 | 2.1kg |
| tdA-150-96 | A | 150 | 98 | 100 | 112 | 69 | 80 | Φ4.5 | 3.9kg |
| tdA-200-96 | A | 200 | 98 | 110 | 112 | 69 | 89 | Φ4.5 | 4.4kg |
| tdB-300-114 | B | 300 | 116 | 102 | 127 | 99 | 87 | Φ4.5 | 5.0kg |
| tdB-400-133 | B | 400 | 135 | 100 | 148 | 111 | 80 | Φ6 | 5.6kg |
| tdB500-133 | B | 500 | 135 | 115 | 148 | 111 | 95 | Φ6 | 7.0kg |
| tdB-750-152 | B | 750 | 154 | 125 | 167 | 133 | 105 | Φ7 | 10.0kg |
| tdB-1K-152 | B | 1K | 154 | 140 | 167 | 133 | 120 | Φ7 | 10.6kg |
| tdF-1.5K-171 | F | 1.5K | 173 | 165 | 181 | 140 | 130 | Φ8*12 | 17.0kg |
| tdF-2K-192 | F | 2K | 194 | 180 | 209 | 140 | 150 | Φ8*12 | 22.5kg |
| tdF-3K-222 | F | 3K | 224 | 195 | 233 | 130 | 140 | Φ8*12 | 32.5kg |
| tdF-5K-240 | F | 5K | 242 | 220 | 257 | 180 | 186 | Φ8.5*14 | 58.5kg |
| tdF-7.5K-65T | F | 7.5K | 270 | 260 | 370 | 180 | 130 | Φ8.5*14 | 60.0kg |
| tdF-10K-65T | F | 10K | 270 | 310 | 375 | 180 | 150 | Φ10*15 | 67.5kg |
| tdF-15K-70T | F | 15K | 300 | 340 | 410 | 180 | 210 | Φ10*15 | 86.5kg |
| tdF-20K-75T | F | 20K | 310 | 390 | 465 | 190 | 230 | Φ10*15 | 111kg |
