What is the purpose of the enclosure of a dry-type transformer?

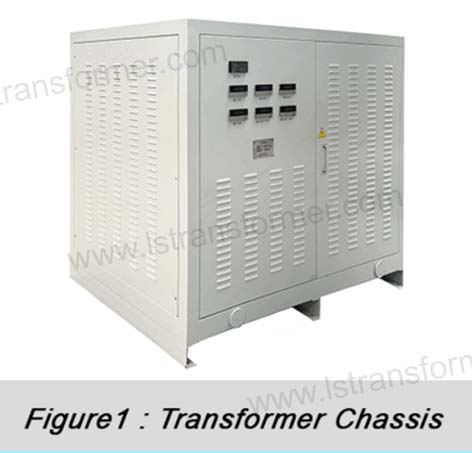

The enclosure of a dry-type transformer not only plays a crucial role in protecting the transformer body but also significantly contributes to ensuring safe operation and extending the equipment's lifespan. The main uses and importance of dry-type transformer enclosures are as follows:

Content

●Ensuring a Good Operating Environment

According to theChinese standardGB 4208, the enclosure of dry-type transformers typically has anIP20rating or higher. This rating indicates that the enclosure effectively prevents the ingress of solid objects larger than12.5 millimeters into the transformer, providing protective coverage. Additionally, a grille must be installed on the rear of the enclosure to prevent small animals or debris from entering the transformer, thereby avoiding potential faults and damage caused by foreign objects.

●Ensuring Personnel Safety

One of the design objectives of the dry-type transformer enclosure is to isolate the transformer from external access, thereby effectively preventingaccidental electric shocks due to close contact with the transformer. The protective design of the enclosure ensures that even during operation, personnel do not come into contact with live parts, greatly enhancing the safety of substations and other power facilities. This is particularly important in industrial, commercial, and residential environments, especially in public areas and high-traffic zones where the protective function of the enclosure is critical.

●Increasing Operational Lifespan

The enclosure of a dry-type transformer effectivelyprevents environmental factors such asrain,wind, andsunlight from impacting the transformer. The enclosure protects the transformer from moisture and corrosive substances, reducing damage caused by prolonged exposure to harsh environmental conditions. By isolating the transformer from adverse external environments, the enclosure significantly extends the operational lifespan of the dry-type transformer, enhancing the equipment's reliability and stability.

●Dust and Contaminant Protection

In industrial environments,the presence of dust and contaminants can adversely affect the normal operation of dry-type transformers. The enclosure effectively blocks these dust and contaminants, keeping the interior of the transformer clean and ensuringproper operation and heat dissipation. This is crucial for the long-term reliable operation of the transformer, particularly in environments with high dust levels or poor air quality.

●Noise Reduction

Dry-type transformers generate a certain level of noise during operation, especially under high loads. The design of the enclosure can significantly reduce noise transmission, therebylowering the ambient noise level and minimizing the impact on the surrounding environment and personnel. This is particularly important in locations where a quiet environment is essential, such as hospitals, schools, and office buildings.

In summary

The enclosure of a dry-type transformer plays a vital role in ensuring a suitable operating environment, protecting personnel, preventing environmental damage, and enhancing the equipment's lifespan. By employing thoughtful design and high-quality enclosure materials, dry-type transformers can operate reliably in various complex environments, providing robust protection for the power system's safety and reliability. The enclosure is not only an essential protective layer but also a key component in enhancing the overall performance and safety of the transformer.
