Dry-Type vs Oil-Immersed Transformers — Which Has Lower Maintenance Costs?
Dry-Type vs Oil-Immersed Transformers
— Which Has Lower Maintenance Costs?
In the global shift toward energy transition and carbon neutrality, choosing between dry-type transformers and oil-immersed transformers has become a critical decision for industrial users. Compliance with international standards like IEC 60076-20 and IEEE C57.12.00 mandates strict efficiency and temperature limits (e.g., winding temperature ≤95°C). The EU Ecodesign Directive 2021 further requires a 30% reduction in no-load losses for new transformers by 2025. Dry-type transformers, favored for their eco-friendliness, already dominate 65% of Europe’s data center market. This article analyzes maintenance cost differences between these transformers, offering actionable insights for industrial decision-makers.

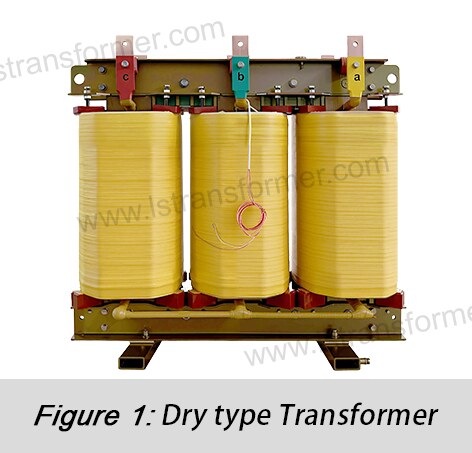

1.Dry-Type Transformer Maintenance Costs & Cost-Saving Strategies
[1]Key Maintenance Cost Drivers
•Winding Cleaning & Moisture Control: Open windings accumulate 200–500g/m² of dust annually. High humidity (>85%) can trigger partial discharges. Example: A coastal chemical plant in China saw a 40% drop in insulation resistance due to poor cleaning, raising annual costs by ¥120,000.
•Cooling System Maintenance: Clogged air filters in forced-air cooling systems can spike temperatures (50% blockage increases temperature rise by 15°C). A data center in Africa delayed filter replacements, shortening transformer lifespan by 3 years.
•Insulation Aging Checks: Ultrasonic testing for epoxy resin cracks costs ~¥5,000 per inspection (15% of annual maintenance).
[2]Cost-Reduction Technologies
•Maintenance-Free Design: IP54-rated enclosures reduce dust buildup by 80%, extending maintenance intervals from 3 months to 2 years.
•Smart Monitoring: IoT systems and self-cleaning filters cut labor costs by 60%. A Shanghai commercial complex reduced fault response time from 72 hours to 2 hours, saving 25% annually.
•Self-Healing Materials: Nano-silica-enhanced epoxy resin achieves 90% crack self-repair.

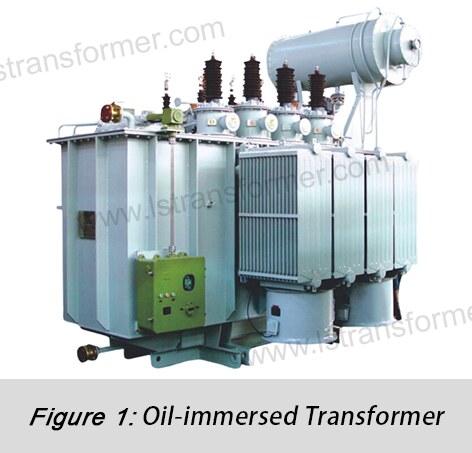

2.Oil-Immersed Transformer Maintenance Challenges & Solutions
●Oil Quality Management: Annual testing (acid value, dielectric loss, etc.) costs ¥800–¥1,500 per test. Water content >50ppm risks winding failure. A Chinese wind farm delayed oil changes, incurring ¥800,000+ in repairs.
●Seal Degradation:Rubber seals fail every 5–8 years, causing leaks and downtime (daily losses exceed ¥100,000). A steel plant reported seal maintenance as 35% of total costs.
●Cooling System Energy Use: Forced-oil cooling consumes 15–20% of total transformer losses.
[2]Innovative Cost-Saving Solutions
●Real-Time Oil Monitoring: Gas chromatographs (e.g., GE’s Kelman Transfix) extend oil replacement cycles from 5 to 8 years, cutting costs by 40%.

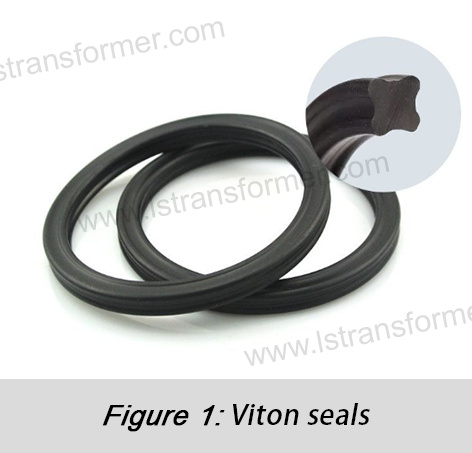

●Advanced Seal Materials: Fluorocarbon rubber seals withstand -30°C to 150°C, lasting 12+ years. Example: Transformers on the Qinghai-Tibet Railway have operated leak-free for a decade.
●Natural Cooling Upgrades:Finned radiators and optimized airflow saved China’s Three Gorges Dam ¥250,000 annually in electricity.
3. Application Scenarios: Dry-Type vs Oil-Immersed Transformers
Scenario | Dry-Type Preferred | Oil-Immersed Preferred |
Environment | Underground substations, high-rises (fire-safe) | Outdoor substations, mines (low protection) |
Load Profile | Commercial (daily load swings >50%) | Heavy industry (24/7 operation) |
Capacity | ≤2500kVA (87% market share) | ≥10MVA (92% market share) |
Regulations | Mandated in new public buildings (GB50016) | Permitted in rural/remote grids |
In Summary
Dry-type transformers excel in low-maintenance costs, driven by oil-free designs, smart monitoring, and compliance with strict regulations like EU REACH. Oil-immersed transformers remain competitive in harsh environments through advanced seals and cooling upgrades. For businesses, the choice hinges on IEC/IEEE standards, local policies, and lifecycle cost analysis. Prioritize solutions that balance energy efficiency, maintenance costs, and operational reliability for long-term savings.
