Why Does Nighttime Transformer Noise Always Disturb Residents?

—45dB(A) Solutions & Global Standards Explained

As urbanization accelerates globally, the demand for quieter residential environments has intensified. According to the International Energy Agency (IEA), approximately 35% of residential areas worldwide face transformer noise exceeding acceptable levels, with nighttime noise pollution being particularly severe. The EU’s revised Environmental Noise Directive (END 2002/49/EC) in 2023 tightened nighttime noise limits to 45dB(A) in residential zones and mandated compliance with ISO 3744 acoustic testing standards. Integrating IEC 60076-27 (transformer noise limits), IEEE C57.12.90 (vibration control), and global case studies, this article explores the root causes of transformer noise and provides systematic solutions to achieve 45dB(A) quiet operation.

Content

1.Core Causes: Three Physical Mechanisms Behind Noise Pollution

•Core Magnetostriction Vibration (60%-70% Contribution)

Traditional silicon steel cores undergo magnetostriction (material expansion/contraction due to magnetic domain shifts) under alternating magnetic fields, with displacements of 5-10ppm. At 50Hz power frequency, this creates 100Hz vibrations and accelerations up to 4.2m/s² (per IEC 60404-8-7). For a 100kVA transformer, core-generated noise can reach 65dB(A), far exceeding global limits.

• Electromagnetic Winding Vibrations (20%-25% Contribution)

Load currents interact with leakage fields, producing Lorentz forces () that cause winding vibrations. A 1000kVA transformer saw 12μm displacements (exceeding IEC 60076-27’s 5μm limit), generating 58dB(A) peak noise.

• Cooling System Aerodynamic Noise (10%-15% Contribution)

Axial fan blade tip speeds exceeding 60m/s create 500-2000Hz broadband turbulence noise. For oil-immersed transformers, fans alone contribute 58dB(A).

2.Systematic Noise Reduction: 4 Core Technologies for 45dB(A) Compliance

• Core Material Innovation: Amorphous Alloys & Laser Etching

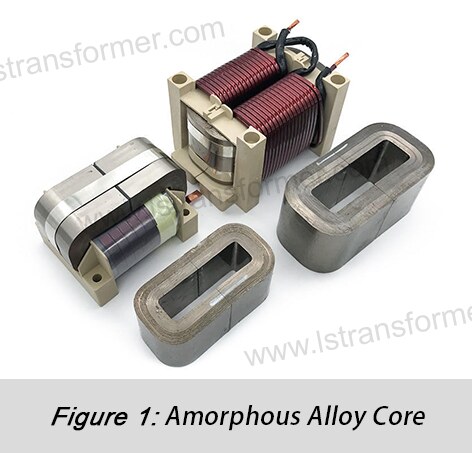

Amorphous alloys (e.g., Metglas 2605SA1) reduce magnetostriction by 90% (to 0.5ppm), directly lowering vibration energy.

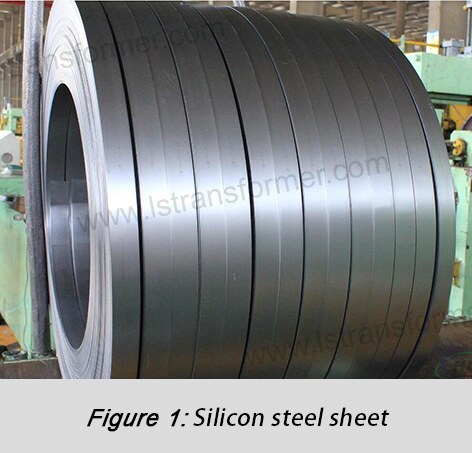

Laser etching creates 20μm grooves on silicon steel surfaces, refining magnetic domains and cutting core losses by 20%. Example: Berlin communities achieved a 6dB noise reduction and 90% compliance rate by lowering core vibrations from 4.2m/s² to 0.8m/s².

•3D Vibration Damping Systems: Blocking Structural Noise Paths

Using butyl rubber + fiberglass pads (50mm thickness, 45±5 Shore hardness), vibration transmissibility drops from 0.8 to 0.2 (ISO 10846 compliant). Adding 1.5x equipment weight to the base shifts resonance frequencies to 25Hz, avoiding human-sensitive ranges. In California, this cut noise from 60dB to 48dB with 30% lower maintenance costs.

• Acoustic Enclosures: Multi-Layer Soundproofing

A 1.5mm galvanized steel outer layer (12kg/m²), 3cm melamine foam middle layer (10,000 Pa·s/m² flow resistance), and 2mm constrained damping adhesive inner layer (n≥0.4  loss factor) combine to reduce noise by 35dB. In the Netherlands, this brought noise down from 65dB to 43dB, meeting EU END requirements.

3.Global Case Studies & Compliance Analysis

In Summary

Transformer noise arises from the combined effects of core magnetostriction, electromagnetic vibrations, and aerodynamic cooling systems. By adopting amorphous alloy cores, 3D vibration damping, and acoustic enclosures, industries can achieve 45dB(A) compliance. These solutions not only mitigate legal risks but also support sustainable urban development under evolving IEC and ISO standards.
