Why Are New Energy Power Station Transformers Prone to Frequent Failures? — Environmental Adaptation Solutions Revealed
Why Are New Energy Power Station Transformers Prone to Frequent Failures?
— Environmental Adaptation Solutions Revealed
With global renewable energy capacity exceeding 3.5 TW (2023 data), transformer failure rates in solar farms and wind farms continue to rise.
According to IRENA, approximately 28% of new energy stations face annual downtime exceeding 120 hours due to transformer issues, resulting in losses of $15–30k/MW. Extreme environmental conditions and design flaws—highlighted by IEC 60076-27 (environmental adaptability) and IEEE C57.21 (thermal design)—are key culprits.
This article analyzes failure mechanisms and provides retrofit solutions to extend equipment lifespan by 50% and reduce maintenance costs by 30–40%.
1.Top 3 Environmental Threats to New Energy Station Transformers
•Dust Accumulation & Thermal Failure
In desert regions, dust density often exceeds 200 mg/m³ (vs. the 10 mg/m³ standard), forming 3–5 mm layers on radiators. Consequences include:
•40% Reduced Cooling Efficiency: Middle Eastern solar farms report temperature spikes from 65°C to 95°C, slashing insulation lifespan from 20 to 5 years.
•Increased Partial Discharge: Conductive dust (e.g., silica) lowers interphase insulation resistance from 5,000 MΩ to 50 MΩ, tripling flashover risks.
•Salt Fog Corrosion: Coastal Wind Farms’Silent Enemy
Coastal areas with salt fog (Cl⁻ >500 ppm) and humidity (>85% RH) suffer:
•Shell Corrosion:Offshore wind turbines in Europe experience corrosion rates of 1.5 mm/year (vs. 0.01 mm normally), requiring €2M replacements every 3 years.
•Insulating Oil Acidification: Salt accelerates oil oxidation, raising acid value from 0.03 to 0.15 mg KOH/g and cutting cooling efficiency by 30%.
•Chemical Reaction:
•Thermal Stress: Material Fatigue in Extreme Climates
Temperature swings (>40°C daily in high-altitude areas or -40°C to +50°C in polar regions) cause:
•Epoxy Cracking: Tibetan solar transformers saw insulation lifespan drop from 15 to 3 years due to resin cracks.
•Seal Failure:Rubber seals become brittle in cold, raising oil leakage risks by 5x.
2.4 Core Technologies for Environmental Adaptation Retrofitting
•Material Upgrades: Proactive Defense
•Plasma-Sprayed Ceramic Coating: A 50 μm Al₂O₃-TiO₂ layer boosts salt fog resistance 8x (per ASTM B117), extending shell lifespan to 10 years (used in Australian wind farms).
•Graphene-Modified Epoxy: Adding 1% graphene reduces Cl⁻ permeability by 90% (GB/T 1733 tested), proven in Chinese coastal stations with 8+ years of crack-free operation.

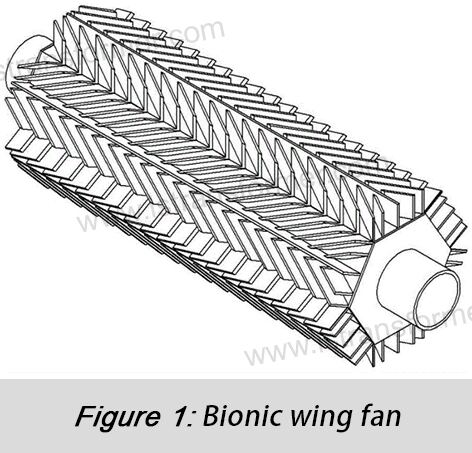

•Biomimetic Heat Dissipation Design
•Hexagonal Fin Structures: Mimicking honeycombs improves cooling efficiency by 40% and reduces dust adhesion by 70%.
•Positive-Pressure Ventilation: Maintaining 10–30 Pa pressure (EN 60076-11 certified) blocks dust ingress. Indian desert plants extended radiator cleaning cycles from 1 month to 1 year.
•Fluorocarbon Rubber (FKM) Seals
FKM withstands -50°C to +150°C (vs. -30°C to +100°C for nitrile rubber), resisting thermal aging and chemical corrosion.
3.Global Case Studies & Results
Scenario | Root Cause | Solution | Outcome |
Middle Eastern Solar Farm | Dust-induced overheating | Biomimetic fins + positive-pressure system | Temperature drop: 95°C → 70°C; lifespan restored to 15 years |
European Offshore Wind Farm | Salt fog corrosion | Ceramic coating + graphene epoxy | Shell lifespan: 3 → 10 years; maintenance costs down 60% |
Tibetan Solar Farm | Thermal stress cracks | Graphene epoxy + FKM seals | Insulation lifespan: 3 → 12 years; downtime reduced 80% |
In Summary
New energy transformer failures stem from combined environmental and design flaws. By adopting ceramic coatings, graphene materials, biomimetic cooling, and advanced seals, operators can meet IEC/IEEE standards, extend equipment life by 50%, and secure long-term ROI. In the era of carbon neutrality, these solutions are critical for sustainable energy asset management.
