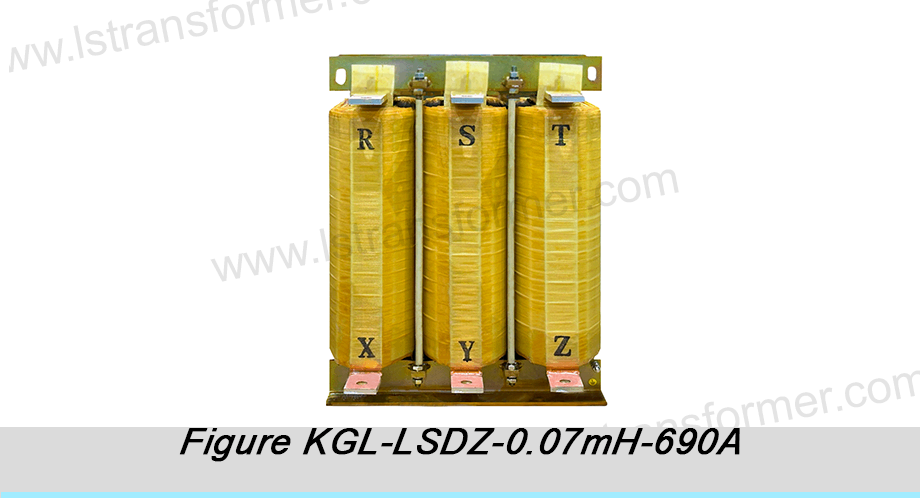

In power systems and industrial applications, reactors are crucial for reactive power compensation and current limiting, making their reliability and stability essential. However, in humid or variable climates, condensation can form inside reactors, reducing insulation performance insulation performance and potentially causing short circuits or equipment damage. This article explores how proper Ingress Protection (IP) rating design and supporting measures can effectively prevent condensation in reactors operating in humid conditions. It also introduces internationally recognized protection standards and practical methods to help users select and maintain suitable reactor products for damp environments.

Content

1. Understanding Condensation and Its Risks to Reactors

Condensation occurs when water vapor in the air contacts a surface whose temperature is below the dew point, turning from gas into liquid water. For reactors, condensation mainly occurs in two situations:

•Condensation due to day-night temperature variations temperature variations:

 In regions with large daily temperature swings, nighttime cooling may cause the internal surface temperature of the reactor enclosure to fall below the dew point.

•Condensation after shutdown and restart:

When a reactor restarts in a humid environment, winding temperature rise increases internal air moisture content; upon cooling, this moisture may condense on cooler components.

Key risks of condensation for reactors include:

•Reduced insulation performance:

Moisture lowers the surface resistivity of solid insulating materials.

•Increased partial discharge:

Moisture combined with contaminants can form conductive paths, leading to partial discharge, which gradually erodes insulation.

•Corrosion of metal parts:

Long-term exposure to condensation accelerates oxidation and corrosion of copper windings and iron cores, shortening equipment lifespan.

Table 1: Variation in typical insulation resistance of reactors under different humidity levels

2. IP Rating Principles and Their Role in Preventing Condensation

The IP rating is a standardized classification system developed by the International Electrotechnical Commission (IEC 60529) to define the protection level of electrical equipment enclosures against solids and liquids. It is widely used in the protective design of power equipment like transformers and reactors.

● Understanding the IP Code

An IP code consists of two digits:

•First digit: Protection against solid objects (0–6)

•Second digit: Protection against liquids, primarily water (0–9K)

For reactors in humid environments, the second digit is particularly important. Common moisture-related protection levels include:

•IPX3:Protected against spraying water at up to up to 60° from vertical.

•IPX4:Protected against splashing water from any direction.

•IPX5:Protected against water jets from any direction.

•IPX7:Protected against temporary immersion in water.

•IPX8:Protected against continuous immersion under specified conditions.

● Anti-Condensation Design Features of High IP-Rated Reactors

To achieve IP56 or higher, reactors typically incorporate:

Sealed Structure Design:

•One-piece molded or welded sealed enclosures to minimize seams and openings.

•Silicone or fluor rubber gaskets with compression set <15%.

•Double-sealed terminals: inner epoxy potting, outer elastomer seal.

Breathing System Design:

•Polymer membrane breathers (e.g., ePTFE) with micropores (0.2–0.5µm), allowing air passage but blocking liquid water.

•Built-in silica gel desiccant with moisture absorption capacity≥30%.

•Integrated dust filter layer with efficiency≥99% for particles≥5µm.

Internal Humidity Control:

•Built-in heaters that activate when ambient humidity >70%, maintaining internal temperature 3–5°C above dew point.

•Humidity indicator cards or electronic sensors for visual management.

•Moisture-resistant insulation materials like Nomex® paper, with absorption rate <3%.

Table 2: Suitability comparison of different IP-rated reactors in humid environments

3. Auxiliary Anti-Condensation Technologies Working with IP Ratings

While high IP ratings effectively prevent direct water ingress, additional technologies are often needed to fully avoid condensation in environments with sharp temperature and humidity fluctuations.

● Internal Heating System Design

Heating systems prevent condensation prevent condensation by keeping the internal temperature consistently above the ambient dew point.

Power Calculation:
Heating power P should satisfy:

P≥k×A× ΔT
Where:

k: Comprehensive heat dissipation coefficient (W/m²·K), typically 3–5.

A: Reactor enclosure surface area (m²).

ΔT: Required temperature difference (K), usually 3–5K.

Control Strategy:

•PID control algorithms adjust heating power based on internal sensor feedback.

•Activation threshold:Starts when internal RH >60% or temperature approaches dew point.

•Graded power output:Auto-switching between 50%/75%/100%.

● Special Coating Technology

Applying anti-condensation coatings inside reactors provides extra protection.

Hydrophobic Coatings:

•Main components: Fluorosilicone resin or nano-silica.

•Contact angle >110°, preventing water droplet adherence.

•Surface energy <25 mN/m, reducing moisture adsorption.

Insulating Moisture-Resistant Varnish:

•Forms a dense film after curing, water vapor transmission rate <5g/m²·day.

•Volume resistivity >1×10¹⁴ Ω·cm.

•Temperature class usually F (155°C) or H (180°C).

● Ventilation and Humidity Balance Design

Proper ventilation design in large reactors helps prevent localized condensation.

Air Duct Design Principles:

•"Bottom-in, top-out" vertical ducts utilize natural hot air rising.

•Airspeed controlled between 0.5–1.5 m/s to avoid rapid cooling.

•Duct cross-sectional area S≥Q/(v×3600), where Q is total heat dissipation (W), v is design airspeed (m/s).

Humidity Balancing Measures:

•Automatic dampers close when external humidity exceeds internal.

•Humidity buffer materials (e.g., silica gel plates, 3–5mm thick) at key points.

•Labyrinth ventilation structures extend air paths to enhance moisture exchange.

4. International Standards and Testing Methods

To ensure reactor reliability in humid environments, major international standards organizations have established relevant test specifications.

● IEC Standard Framework

•IEC 60076-11:Covers loading and temperature rise requirements for dry-type transformers and reactors, including damp heat tests.

•IEC 60721-3-3:Classifies climatic conditions, defining various humidity levels.

•IEC 61373:Vibration and shock tests to verify enclosure integrity under mechanical stress.

● Detailed Test Methods

Damp Heat Cycle Test (per IEC 60068-2-30):

•Temperature cycle:25°C → 40°C → 25°C.

•Humidity:Maintain 93±3% RH during high-temperature phase.

•Cycles:Typically at least 6 full cycles.

•Post-test requirements:Insulation resistance ≥100 MΩ, no visible condensation.

IP Rating Verification Tests:

•IPX5/X6 Test:Use 12.5mm nozzle, flow rate 100L/min, distance 3m, duration ≥3 min.

•IPX7 Test:Immersion to 1m depth for 30 minutes.

•Post-Test Inspection:No internal water traces; insulation resistance change <10%.

5. Selection and Maintenance Recommendations

● Selection Guide

Choose reactors with appropriate IP ratings based on environmental conditions:

•Temperate coastal areas: Recommend IP55 or above, with heating.

•Tropical rainforest climate: Recommend IP66, mandatory automatic humidity control.

•Areas with large day-night temperature differences: Choose IP54 or above, with internal temperature internal temperature buffering.

Key Parameter Checklist:

•Maximum relative humidity range.

•Annual temperature variation temperature variation amplitude.

•Potential water accumulation/splash risks.

•Pollution degree (salt mist, dust, etc.).

● Maintenance Best Practices

Routine Checks:

•Monthly inspection of seal elasticity (hardness change ≤10 Shore A).

•Quarterly insulation resistance measurement, tracking trends.

•Check breather color change; replace if >50% of silica gel has changed color.

Seasonal Maintenance:

•Test heating system before humid seasons.

•Clean ventilation paths, ensuring ≥80% of designed airflow area.

•Tighten all external connections per IEC 60076 torque specifications.

Early Warning Signs:

•Quarterly insulation resistance drop >20%.

•Sudden partial discharge increase >30%.

•Uneven condensation on enclosure surface.

•Frequent breather saturation (color change cycle <1 month).

Conclusion

Protecting reactors from condensation in humid environments requires a systematic approach combining appropriate IP ratings, intelligent humidity control, and disciplined maintenance. Reactors rated IP56 or higher, equipped with internal heating, effectively handle most humid challenges. For extreme conditions, IP67 combined with special coatings offers superior protection. Users should select rigorously tested reactors based on specific environmental parameters, refer to IEC and IEEE standards, and establish scientific maintenance plans to ensure long-term stable operation in damp conditions.

With advancements in materials science and IoT, future reactor anti-condensation technologies will become smarter—incorporating AI-based humidity prediction and self-healing seals—further enhancing performance in harsh settings. For current needs, choosing high-quality products compliant with international standards and backed by complete test data remains the most reliable solution to avoid condensation risks.
