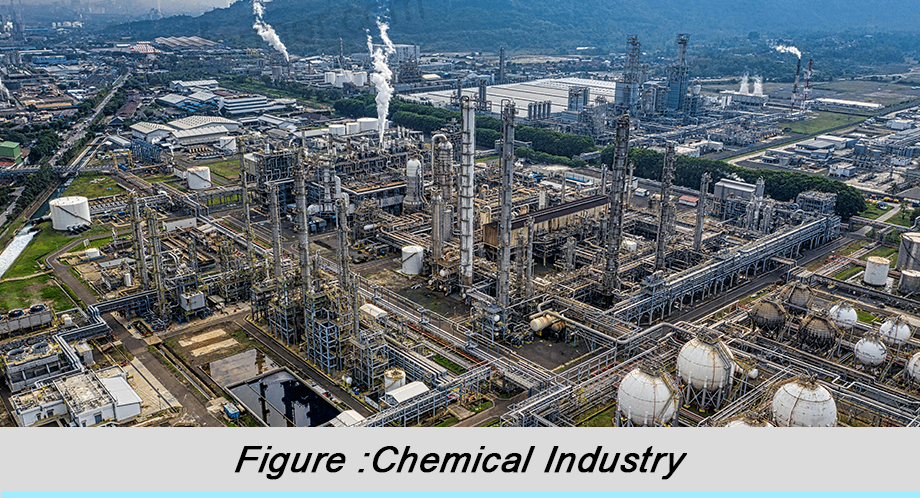

In industrial settings, transformers are continuously exposed to various environmental factors. Among these, corrosive chemical gases have a particularly significant impact on transformer lifespan. According to research data from the International Electrotechnical Commission (IEC) and the International Council on Large Electric Systems (CIGRE), transformers operating in chemical industrial parks have an average lifespan that is 30%–50% shorter than those in standard environments. This article provides an in-depth analysis of how corrosive gases affect transformer performance, discusses the effectiveness of protective measures, and offers maintenance recommendations based on international standards. These insights help users extend equipment service life and reduce maintenance costs.

Content

1. Mechanisms of Corrosive Gas Impact on Transformer Materials

● Chemical Degradation of Winding Insulation Materials

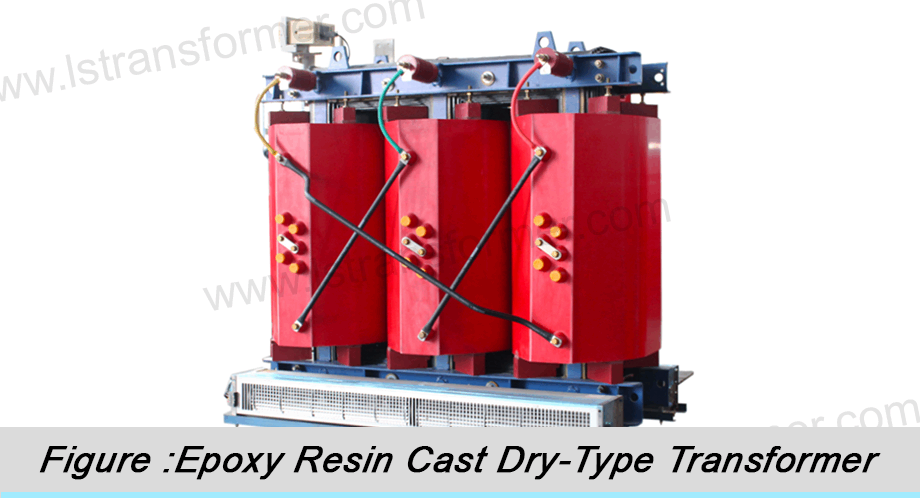

Transformer winding insulation materials—primarily cellulose paper and epoxy resin—undergo complex chemical reactions when exposed to corrosive gases such as hydrogen sulfide (H₂S), sulfur dioxide (SO₂), and nitrogen oxides (NOx). Tests by the National Electrical Manufacturers Association (NEMA) show that when SO₂ concentration exceeds 0.5 ppm, the annual rate of decrease in the degree of polymerization (DP) of insulation paper accelerates by 3–5 times.

— Chemical Reaction Process:

SO₂+ H₂O→H₂SO₃(sulfurous acid)
H₂SO₃+ O₂ →H₂SO₄(sulfuric acid)

Sulfuric acid reacts with the β-1,4 glycosidic bonds in the cellulose molecular chain, leading to chain scission. This manifests as reduced mechanical strength and increased dielectric loss in the insulation paper.

— Effectiveness Analysis of Protective Measures:
Using fluoroelastomer seals (with corrosion resistance meeting ASTM D2000 HK grade) can reduce gas permeability by over 85%. The principle lies in the strong electronegativity of fluorine atoms forming a molecular barrier that prevents penetration by polar corrosive molecules.

● Electrochemical Corrosion of Metal Components

Steel components such as transformer tanks and cooling fins undergo various types of corrosion in environments containing chlorine gas (Cl₂) and ammonia gas (NH₃):

The NACE International Standard SP0169 recommends using aThree-Layer Protection System:

•Base Layer: Zinc-rich epoxy primer (cathodic protection)

•Intermediate Layer: Glass flake coating (physical barrier)

•Top Layer: Polyurethane topcoat (weather-resistant layer)

Practice has proven that this system can control the corrosion rate tobelow 0.01 mm/yearwithin apH range of 2–11.

3. Monitoring and Assessment Techniques

● Key Technical Parameters for Online Monitoring Systems

Based on IEEE Std C57.104-2019, key monitoring indicators should include:

Where:

• CDA: Corrosive Gas Index

• Gi: Concentration of the i-th gas

• Ki: Gas Corrosivity Coefficient (SO₂=1.8, H₂S=2.3, Cl₂=4.0)

• Voil: Oil volume (m³)

Protective measures should be initiated when CDA > 15, and shutdown considered when CDA > 25.

● International Standards Comparison for Oil Quality Analysis

Practice shows that performing thermal aging tests according toIEC 61125can predict insulation life 300–500 operating hours in advance.

4. Economic Analysis of Protection Strategies

● Cost-Benefit Ratio of Material Selection

According to an ABB technical report, the total cost over a 10-year cycle for different protection schemes is:

•Basic Carbon Steel: Initial15,000,Maintenance8,000/year

•304 Stainless Steel: Initial28,000,Maintenance2,500/year

•Composite Material: Initial35,000,Maintenance800/year

Net Present Value (NPV) calculations indicate that the composite material solution begins to demonstrate cost advantages from the 6th year onward.

● Technological Breakthroughs with New Nano-Coatings

Graphene-modified coatings (meeting VDA 230-214 standard) exhibit:

•7-fold increase in wear resistance (Taber test CS-10 wheel, 1 kg load)

•90% improvement in gas barrier properties (ASTM E96 moisture vapor transmission test)

•Temperature resistance range from -60°C to +180°C

Laboratory data indicates that transformers using this technology experience a 40% lifespan extension in simulated chemical environments.

Conclusion and Recommendations

Chemical corrosive gases affect transformer lifespan through multiple pathways. However, their impact can be significantly mitigated through scientific material selection, monitoring technologies, and protective measures. Implementing the following international best practices is recommended:

1.Select anti-corrosion coating systems according to ISO 12944-2017.

2.Implement oil monitoring frequency as stipulated by IEC 60599.

3.Refer to IEEE C57.152 for remaining lifespan assessment.

4.Consider using new synthetic ester insulating oils conforming to ASTM D7151.
