How Does Dust Accelerate Transformer Aging?

—Dust Protection Technologies to Extend Equipment Lifespan

According to the International Energy Agency (IEA), 15% of global transformer failures are caused by dust pollution, with equipment lifespan reduced by 30%-50% in deserts and industrial areas. Dust not only clogs cooling systems but also triggers insulation degradation and partial discharge. Based onIEEE C57.12.00 andIEC 60076-7 standards, this article systematically analyzes dust hazards and provides four dust protection solutions to extend equipment lifespan and reduce maintenance costs.

Content

1. How Does Dust "Devour" Transformer Lifespan?

● The Silent Killer of Insulation Performance

Metal particles (e.g., iron, aluminum) in dust accumulate on insulation surfaces, forming conductive paths:

(1) Conductive Channel Formation: Under electric fields,  metal particles migrate to high-voltage bushings or winding surfaces, creating micron-scale "metal bridges." When the dust layer reaches 0.1mm (equivalent to A4 paper thickness), contact resistance drops sharply, forming continuous conductive paths.

Data: ASTM D257 tests show that 35kV bushings covered with 0.1mm iron dust experience an 80% drop in insulation resistance (from 10GΩ to 2GΩ).

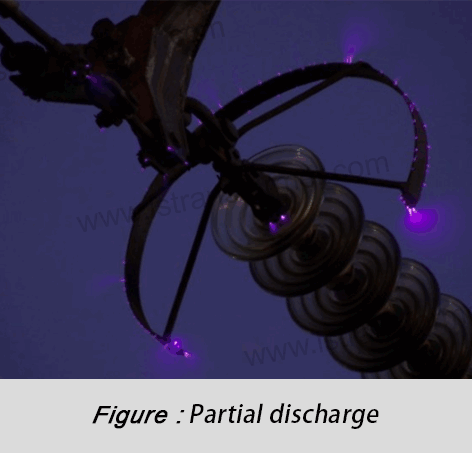

(2) Surge in Partial Discharge:Conductive paths distort electric fields, creating high-intensity zones at dust edges. For example, a 10kVA transformer in dusty environments sees partial discharge rise from 5pC to 120pC (exceeding IEC 60270 safety thresholds), leading to insulation carbonization.

Case Study:A desert substation in Saudi Arabia suffered a $500,000 loss due to bushing flashover caused by dust accumulation.

● Chronic Blockage of Cooling Systems

Dust covers radiators and oil channels, triggering a "heat accumulation-insulation aging" cycle:

(1) Radiator Clogging: A 0.5mm dust layer reduces cooling efficiency by 40% (IEC 60076-14).

(2) Rising Oil Temperature:For every 10°C above design temperature, insulation paper aging doubles (Arrhenius model).

(3) Insulation Strength Decline:At 85°C (vs. 65°C), insulation paper loses 50% tensile strength in 5 years (IEEE 1276).

Quantitative Model: Every 10% increase in radiator dust coverage raises oil temperature by 4-6°C,

halving lifespan per 10°C overheat.

2. Four-Dimensional Dust Protection System

● Sealed Design Innovations

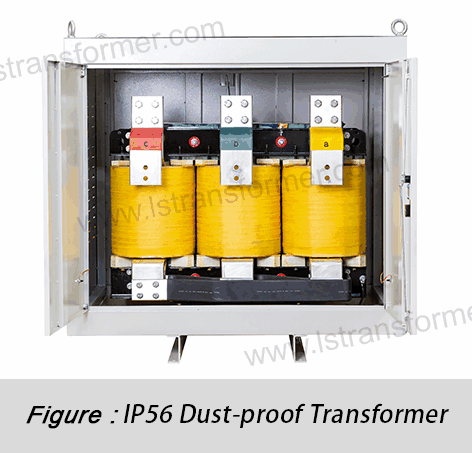

(1) Technology:IP55/IP65 enclosures (IEC 60529) with triple barriers:

·Silicone Seals: <5% compression deformation (ISO 815-B), 20-year lifespan (-50°C~150°C).

·Labyrinth Ventilation: Z-shaped ducts trap >95% of >10μm particles via inertial collision.

·Breaker Filters: Nano glass fiber captures 0.3μm particles (1/8 of PM2.5) with >90% airflow retention.

(2) Performance Comparison:

● Active Filtration Systems

(1) Solutions:

·Cyclonic Pre-filters: 15m/s tangential airflow removes >10μm particles (98% efficiency).

·Electrostatic Modules: 12kV fields capture 0.1-1μm particles (99.5% efficiency).

(2) Benefits:

Cooling restored to 95% design efficiency after 90% dust removal.AndPartial discharge reduced to 8pC (IEC 60270 compliant).

(3) Cost Analysis:

● Surface Coating Technology

(1) Materials:

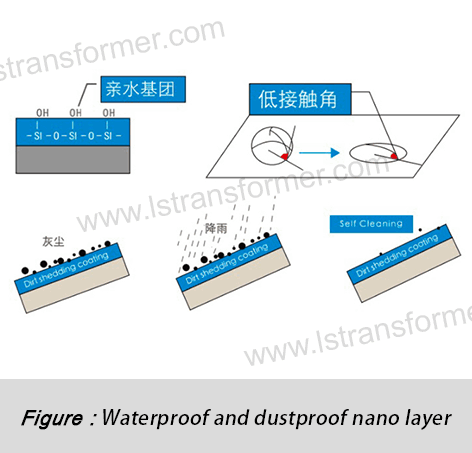

·Dust-Repellent Nano-coatings: Microstructures (contact angle >150°) reduce dust adhesion by 92% (ISO 27448).

·Self-Cleaning Coatings: Titanium dioxide breaks down organic pollutants under UV light (ISO 22197-1).

(2) Data:

● Smart Monitoring Systems

(1) Components:

·Laser Dust Sensors: ±3% accuracy for 0.1-100μm particles (1 update/sec).

·Thermal Cameras: 640×480 IR resolution detects dust hotspots (0.05°C sensitivity).

·Predictive Algorithms: Machine learning (IEEE 1859) forecasts risks 30 days in advance.

(2) Case Study:A Chilean copper mine extended cleaning cycles from 3 to 18 months, cutting maintenance costs by 67%.

In Summary

Dust accelerates transformer aging through combined physical-chemical effects. Implementing a four-dimensional system—sealing, filtration, coatings, and smart monitoring—can restore 85%-95% of design lifespan. IEC 60815 Class C/D and IEEE 1859 provide frameworks:

·IP65 + electrostatic filters (99.5% dust capture).

·Industrial zones: Nano-coatings (92% self-cleaning).

·Global applications: Smart monitoring reduces costs by 60%.
