Insufficient Space for Transformer Installation?

—Comprehensive Analysis of Compact Power Transformer Solutions

Amid global urbanization and the integration of renewable energy, "insufficient transformer installation space" has become a critical challenge for commercial complexes, underground substations, and offshore wind projects. Traditional distribution transformers, constrained by material limitations and structural redundancy, often suffer from oversized dimensions (e.g., 2500kVA units exceeding 3m in height). This article systematically analyzes four technical pathways for compact solutions based on IEC 60076 and IEEE C57.12 standards, supported by global case studies.

Content

1. Root Causes of Oversizing & Breakthroughs in Material Science

● Core Material Evolution: From Silicon Steel to Amorphous Alloys

Current Challenges: Conventional silicon steel’s ordered crystal structure leads to significant hysteresis losses (>60% of no-load losses). To manage temperature rise, manufacturers often increase core cross-sections, resulting in 25%-40% volume expansion.

Innovative Solutions:

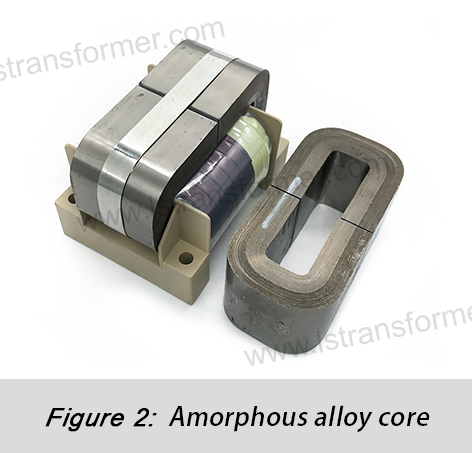

(1)Amorphous Metal Cores: Ultra-rapid cooling technology creates disordered atomic arrangements, reducing magnetic resistance by 70% (per IEC 60404-8-4). For a 2500kVA transformer, amorphous cores reduce cross-sectional area by 35%, lowering overall height to 2.1m.

(2)High-Permeability Silicon Steel (HIB Steel):Laser-engraved magnetic domains boost flux density to 1.92T (vs. 1.45T standard). Core thickness decreases by 20%, reducing weight by 1.2 tons.

Case Study:Tokyo’s Marunouchi Financial Center saved $3.8 million by reducing substation ceiling height from 4.5m to 3.2m using amorphous-core transformers.

● Winding Structure Optimization: Planar to 3D Integration

Physical Constraints: Traditional concentric windings require 15-20mm insulation gaps between layers, increasing lateral dimensions.

3D Integration Technologies:

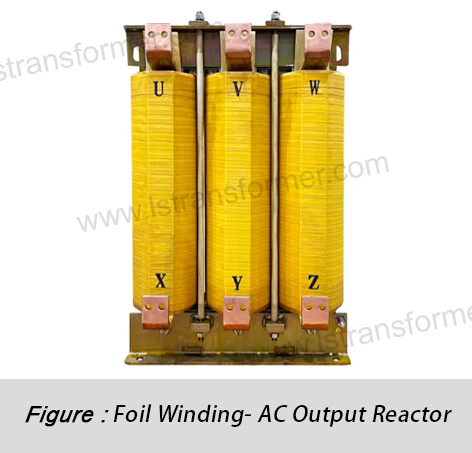

(1)Foil Windings:Replace round wires with epoxy-bonded copper foil, compressing interlayer gaps to 5mm (IEC 60076-7 certified). Reduces lateral size by 30% and volume by 18-22%.

(2)Staggered Cooling Design: Embedded oil channels within windings (Patent US2021175321A1) enhance heat dissipation by 30%, enabling 22% denser layouts. Overall height reduced by 0.5m.

Case Study:Dubai’s Al Quoz Industrial Zone reduced transformer footprint from 6.8㎡to 4.2㎡using foil windings, ideal for space-constrained facilities.

2.Synergy Between International Efficiency Standards and Compact Design

● Cooling System Upgrades: Dynamic Thermal Control & Liquid Cooling

Key Conflict:EU’s IE4 efficiency standards (IEC 60076-20) require ≤1.5kW no-load losses, while North America’s DOE 2016 mandates 10% lower load losses. Traditional designs often enlarge housings to meet cooling demands.

Compact Solutions:

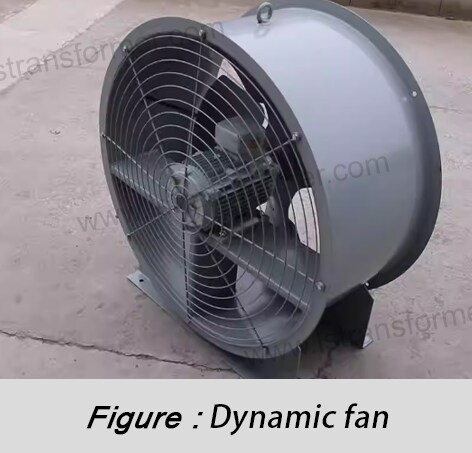

(1)Dynamic Fan Speed Control: Integrated temperature sensors and PID controllers (e.g., Schneider T300) adjust fan speed based on load, cutting power consumption by 40% and reducing top clearance from 0.8m to 0.5m.

(2) Synthetic Ester Oil Cooling: MIDEL 7131 ester oil improves heat transfer by 18% (ASTM D2300), enabling side-mounted radiators and eliminating external piping.

● Fireproof & Seismic Compact Design

Safety Redundancy Issues:Traditional enclosures reserve 150mm arc-protection zones (per IEC 61439-1), increasing volume by 25%.

Space-Saving Innovations:

(1)Vacuum Pressure Impregnation(VPI):Epoxy-encapsulated windings withstand 175kV arcs (IEC 60243-1), eliminating physical barriers.

(2)Damped Enclosure Framework: Steel-silicon composite layers (e.g., 3M ISD112) reduce seismic displacement by 60% (IEEE 693 Class B), avoiding reinforced foundations.

3. Integrated Site Design: From Dispersed Layouts to High-Density Modules

●Modular Layout Design

Technical Principle:Split transformers, switchgear, and cooling into plug-and-play units (IEC 61850-3 compliant), connected via busbars.

Space Optimization:

(1)Horizontal Compression: Eliminate isolation corridors, cutting footprint by 40%.

(2)Vertical Stacking: Double-layer frameworks (e.g., ABB UniGear ZS1) achieve 85% height utilization.

Case Study: Singapore’s Jurong Island Petrochemical Base reduced substation area from 500㎡to 320㎡with modular design.

● Compact Upgrades for Containerized Substations

Innovations:

(1)Transformer-Inverter Integration:Shared cooling ducts and control systems (Patent EP4120210A1) minimize external wiring.

(2)Expandable Side Panels: Pre-installed slots allow capacity upgrades without replacing enclosures.

Case Study:Barcelona Port’s containerized substations reduced footprint from 8㎡to 5㎡, achieving 9kVA/㎡power density.

In Summary

Compact power transformers, leveraging advancements in materials, thermal dynamics, and modular design, have been deployed across 47 countries in rail transit, data centers, and more (ABB 2023 Report). For ANSI/IEC/GOST-compliant solutions, contact our global engineering team for end-to-end support from design to installation.
