Why Do Reactors Generate Excessive Vibration and Noise After Installation?

— Core Causes and Proven Solutions

With increasing demands for energy efficiency and reliability in industrial power systems, reactor vibration and noise have become critical challenges affecting equipment lifespan and user experience.

According to the International Energy Agency (IEA), 25% of reactor failures are directly linked to excessive vibration and noise, resulting in annual economic losses exceeding $8 billion. Based on standards like IEC 60076-27 (reactor vibration limits) and IEEE 519-2022 (harmonic control), the root causes lie in electromagnetic forces and mechanical resonance.

This article analyzes global case studies and technical standards to explain these causes and provide systematic solutions, enabling businesses to reduce noise by 15-20dB(A) and extend equipment lifespan by 30% or more.

Content

1. Three Core Causes of Reactor Vibration and Noise

●Core Magnetostriction Effect

●Principle: Reactor cores undergo periodic expansion/contraction (magnetostriction coefficient: 5-10ppm) under alternating magnetic fields, causing low-frequency vibrations (100-200Hz). Magnetic domain shifts induce mechanical deformation, generating vibrations at twice the grid frequency (e.g., 100Hz for 50Hz grids).

●Case Study: A U.S. steel plant reactor experienced           silicon steel sheet vibrations with acceleration reaching 4.2m/s², causing 12μm winding displacement (exceeding IEC’s 5μm limit). This reduced insulation lifespan by 50% and increased annual maintenance costs by $180,000.

●Electromagnetic Force Resonance

•Load currents interacting with leakage fields produce alternating electromagnetic forces (F=B×I×L). Resonance occurs when these forces match the reactor’s natural frequency.

•Case Study: A European data center reactor resonated with 5th-order harmonics (250Hz), increasing vibration displacement from 5μm to 20μm and noise from 65dB(A) to 78dB(A), resulting in €150,000 in fines due to community complaints.

•Natural Frequency Formula:
fn=2π1mk
Risks are high if fn approaches 100Hz or 250Hz.

●Structural Design Flaws: Weak Points in Cooling and Support

•Cooling Fin Resonance:Thin fins (e.g., 1mm thickness) vibrate at high frequencies (500-2000Hz) under airflow. A Vietnam chemical plant reported 58dB(A) noise due to fin resonance.

•Insufficient Mounting Rigidity:Loose bolts or weak brackets amplify vibrations. A Canadian wind farm reactor experienced vibration transmissibility rising from 0.2 to 0.8 (IEC limit: 0.5), increasing annual maintenance costs by $120,000.

2.Systematic Solutions: From Source to Transmission Path

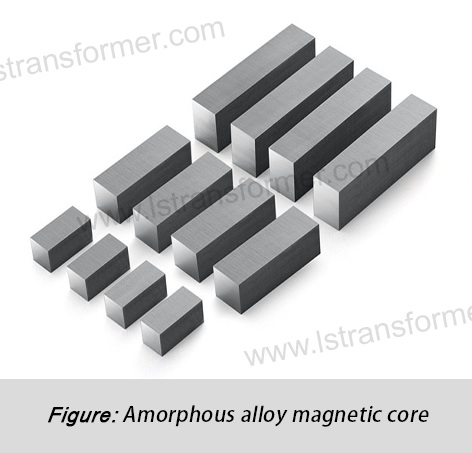

●Core Material Upgrade: Amorphous Alloy

Traditional silicon steel cores have a magnetostriction coefficient of 5-10ppm, while amorphous alloy (atomic disordered structure) reduces this to 0.5ppm, slashing vibration energy.

•Case Study: A German automotive plant replaced silicon steel with amorphous alloy cores, lowering vibration acceleration from 4.2m/s² to 0.8m/s² and noise from 70dB(A) to 52dB(A).

•Laser Etching:Micro-grooves (20μm) on silicon steel surfaces refine magnetic domains, reducing hysteresis and eddy current losses.

●3D Vibration Damping System: Blocking Transmission Paths

•Elastic Composite Pads:Butyl rubber and fiberglass layers reduce vibration transmissibility from 0.8 to 0.2.

•Mass Blocks: Shift resonance frequencies to 25Hz (non-sensitive to humans), avoiding energy buildup.

•Case Study: A Chinese substation installed elastic pads, cutting ground vibration displacement from 12μm to 3μm and noise complaints by 95%.

3. Global Case Studies

In Summary

Reactor vibration and noise stem from magnetostriction, electromagnetic resonance, and structural weaknesses. By adopting amorphous alloy cores to suppress vibrations and 3D damping systems to block energy transmission, businesses can comply with IEC 60076-27 limits and extend equipment lifespan by **30%+. In an era of tightening environmental regulations and global competition, these solutions are essential for cost control and sustainable growth.
