Why Does Electromagnetic Interference (EMI) Challenge Precision Equipment?

—How Custom Reactors Provide Precision Solutions

As industrial automation and precision equipment applications grow, electromagnetic interference (EMI) has become a critical challenge across manufacturing, healthcare, and scientific research.

According to the International Electrotechnical Commission (IEC), 45% of precision equipment failures are directly linked to EMI, causing issues like medical imaging misdiagnoses, semiconductor yield losses, and lab data corruption, with annual global losses exceeding $20 billion.

This article explores EMI root causes aligned with IEC 61000 (EMC Standards) and IEEE 519-2022 (Harmonic Control), and introduces custom reactors as a systematic solution to achieve 99% EMI suppression, ensuring equipment reliability and data accuracy.

Content

1. EMI Causes and Consequences

●High-Frequency Harmonic Pollution: The Invisible Threat

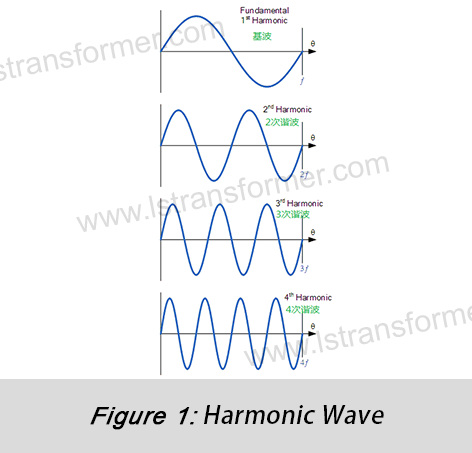

Non-linear loads (e.g., inverters, switch-mode power supplies) generate 5th–50th harmonics (250Hz–2.5kHz) that distort signals and trigger equipment malfunctions. As per the formula:
,
harmonic voltages superimpose at inputs, leading to data errors or shutdowns.
Case Study: A German semiconductor plant faced 30% increased lithography positioning errors due to 5th harmonics, costing $120,000 daily in wafer losses.

●Common-Mode Noise: Ground Loop Coupling Risks
Impedance mismatches in grounding systems (e.g., resistance >1Ω) create common-mode currents via parasitic capacitance (formula:), causing equipment voltage drift and data inaccuracies.
Case Study: A U.S. hospital’s MRI system saw SNR drop from 120dB to 80dB due to common-mode noise, raising misdiagnosis rates by 25%.

●RF Radiation: Wireless Device Interference

High-frequency emissions (2.4GHz–5GHz) from 5G towers, RFID systems, etc., induce circuit coupling, resulting in false triggers or data anomalies.

2. Core Technologies of Custom Reactors

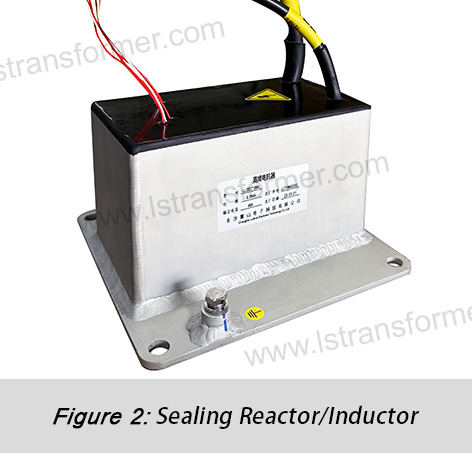

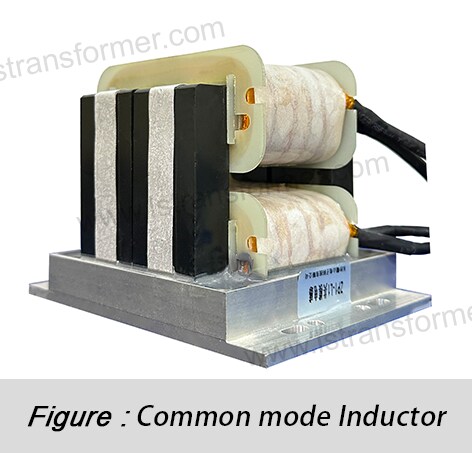

●Common-Mode Suppression Reactors: Blocking Noise Paths
Using nanocrystalline cores and high-impedance magnetic circuits, these reactors limit common-mode currents to <10mA (per IEC 61000-4-6) with >40dB insertion loss (10kHz–1MHz).

●High-Frequency Filtering Reactors: Targeting Harmonics
Tailored LC networks resonate at specific harmonic frequencies (e.g., 5th/250Hz), boosting impedance to 100Ω and reducing harmonic currents by 90% (IEEE 519-2022 compliant).
Case Study: A German automotive electronics factory reduced THD from 35% to 3%, boosting production yield by 18%.

●Broadband Shielding Reactors: Combating RF Radiation
Multi-layer metallized films (0.1mm) and ferrite cores (µ=5000) reflect high-frequency waves via eddy currents, achieving >60dB shielding efficiency.

3. Compliance and Performance

In Summary

EMI arises from three key factors: harmonic conduction, ground-loop coupling, and RF radiation. Custom reactors—designed for frequency-domain filtering and path blocking—reduce equipment malfunctions by over 90% while meeting IEC 61000 and FDA standards. In the era of Industry 4.0 and smart healthcare, this approach is not just about efficiency but also safeguarding data integrity and human safety.
