What are the characteristics of cooling methods for dry-type transformers?

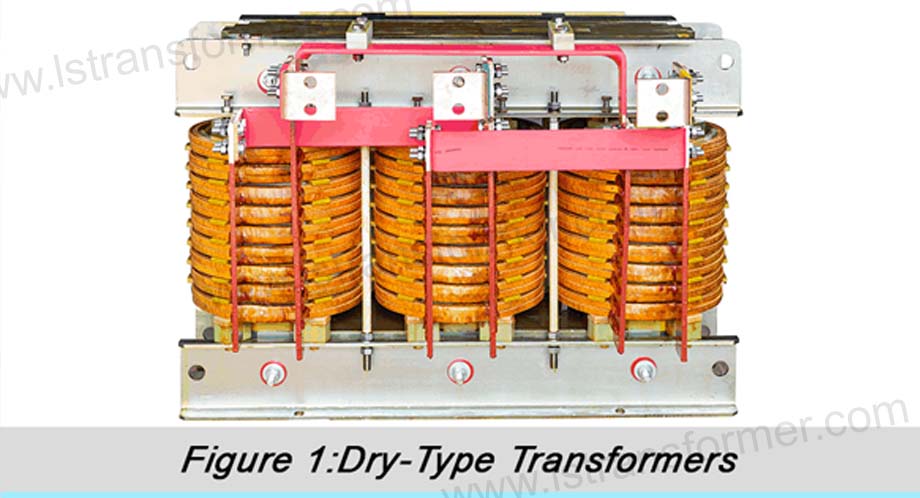

Due to their unique insulation materials and structures, dry-type transformers exhibit different cooling characteristics compared to oil-immersed transformers. The primary characteristics of cooling methods for dry-type transformers are as follows:

Content

●High Safety and Environmental Friendliness

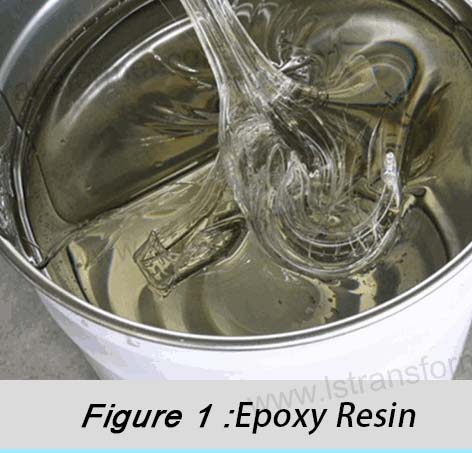

The cooling methods of dry-type transformers are notable for their high safety and environmental friendliness. The insulation materials used, such asepoxy resin or other non-polluting substances, ensure that even in the event of a fault, there is no risk of oil leakage or fire. Dry-type transformers are often used in load centers, such as urban areas or industrial facilities, effectively reducing negative environmental impacts and meeting stringent fire safety requirements.

●Low Noise and High Efficiency

The cooling methods of dry-type transformers typically involve natural air cooling or forced air cooling systems. These transformers operate with very low noise levels, significantly quieter than oil-immersed transformers. Furthermore, the optimized cooling design and efficient insulation materials contribute to reduced energy consumption and enhanced overall energy efficiency. Since their cooling process does not rely on liquid coolants, they avoid the energy consumption and maintenance issues associated with liquid cooling systems.

●Excellent Heat Dissipation and Overload Capability

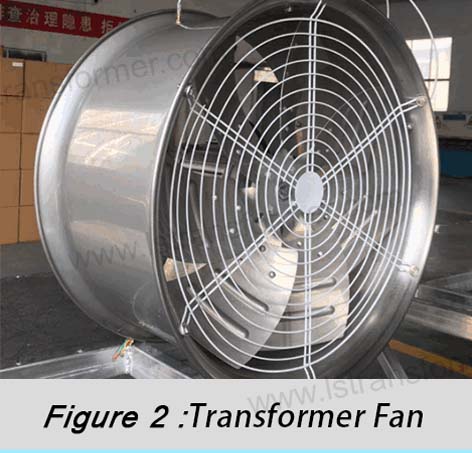

Dry-type transformers are designed with excellent heat dissipation capabilities. Their cooling methods includenatural convection and forced air cooling. Particularly under high load or overload conditions, forced air cooling systems can effectively increase the transformer's operational capacity. Some dry-type transformers can also employforced air cooling to enhance heat dissipation, ensuringstable operationeven under extreme load conditions.

●Superior Waterproof Performance

The design of dry-type transformers takes into account the impact ofenvironmental humidity. Their sealed structure effectively prevents the ingress of moisture and humidity. Dry-type transformers can adapt to high humidity and other harsh environmental conditions, ensuring stable operation in various settings.The moisture-resistant design allows them to maintain good insulation performance and long-term stability even in humid environments.

●Compact Size, Light Weight, and Easy Installation

Since dry-type transformers do not require oil as a cooling medium, they are relatively smaller and lighter. This compact design means they occupy less space and have lower installation costs, making them suitable for space-constrained locations. The structure of dry-type transformers also makes them more convenient to transport and install, reducing infrastructure construction and maintenance costs.

In summary

In summary, the cooling methods of dry-type transformers offer significant advantages in terms of safety, environmental friendliness, energy efficiency, and heat dissipation. They also exhibit unique benefits in waterproof performance, compact size, and weight. These characteristics make dry-type transformers widely used in modern power systems, capable of maintaining stable operation under various environmental conditions.
