What is the definition of the no-load characteristics measurement?

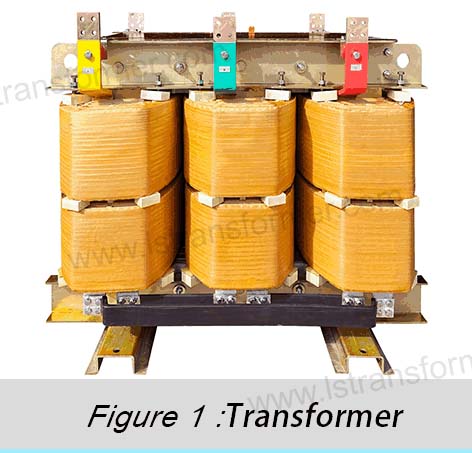

The measurement of a transformer's no-load characteristics is one of the key methods for assessing its performance and efficiency.No-load characteristics refer to the parameters measured and recorded when the secondary winding of the transformer is open-circuited, i.e., with no load connected, and specific excitation conditions are applied. These measurements includeno-load voltage, no-load current, and no-load losses,which are crucial for understanding and optimizing the design and operation of the transformer.

Specific Parameters

●No-Load Voltage:

The no-load voltage is the voltage measured across the secondary winding of the transformer when it is open-circuited. This voltage is induced in the secondary winding by the voltage applied to the primary winding through electromagnetic induction, with no load connected. Theno-load voltage reflects the transformer’s voltage transmission capability under no-load conditions and is a significant indicator of the quality of the transformer’s design and manufacturing process.

●No-Load Current:

The no-load current is the current measured in the primary winding of the transformer when the secondary winding is open-circuited. This current is necessary to maintain the magnetic flux in the transformer, including the core magnetizing current and the eddy current losses. The magnitude of the no-load current is closely related to factors such as themagnetic permeability of the transformer’s core material and the number of turns in the primary winding. A lower no-load current generally indicates better magnetic performance of the core material and design.

●No-Load Losses:

No-load losses refer to the power losses measured in the primary winding of the transformer when the secondary winding is open-circuited. These losses mainly include core hysteresis losses and eddy current losses.No-load losses represent the primary energy loss of the transformer under no-load conditions and affect its efficiency and cost-effectiveness. Lower no-load losses indicate higher energy efficiency of the transformer’s core material and design.

Specific Measurement Steps

The process of measuring no-load characteristics typically involves the following steps:

●Initial Preparation:

Open-circuit the secondary winding of the transformer, ensuring no load is connected. Then, apply therated voltage to the primary winding to ensure the transformer operates under rated conditions.

●Measuring No-Load Voltage:

Use a voltmeter to measure the voltage across the secondary winding and record the no-load voltage value. This step reflects the transformer’s voltage transformation ratio and the secondary winding’s voltage output capability.

●Measuring No-Load Current:

Use an ammeter to measure the current in the primary winding and record the no-load current value. Analyzing the no-load current helps assess the magnetic performance of the transformer core and the design quality of the primary winding.

●Measuring No-Load Losses:

Use a wattmeter to measure the power losses in the primary winding and record theno-load loss value. This step is crucial for evaluating the transformer’s energy efficiency and operating costs.

In summary

The measurement of no-load characteristics is an essential part of the transformer design and manufacturing process. Through these measurements, a comprehensive assessment of the transformer’s performance can be made, and data support can be provided for optimizing design. Accurate no-load characteristic measurements help engineers identify and address issues in design and manufacturing, enhancing the overall performance andoperational reliability of the transformer.
