What is the purpose of measuring the no-load voltage and no-load current?

Measuring the no-load voltage and no-load current is a critical aspect of assessing transformer performance and quality. These measurements can reveal the operational status and characteristics of the transformer under no-load conditions, providing essential data support for design, manufacturing, and maintenance. The primary objectives of measuring no-load voltage and no-load current are as follows:

Content

●Verification of Transformer Design Parameters:

When the no-load losses of a transformer are minimal, the no-load voltage is essentially equal to the induced voltage, and the ratio of the primary to secondary no-load voltages is equal to the turns ratio. By measuring the no-load voltage, it is possible to verify whether the turns ratio of the transformer design meets the design specifications, ensuring that the transformer provides an accurate voltage transformation ratio under rated conditions.

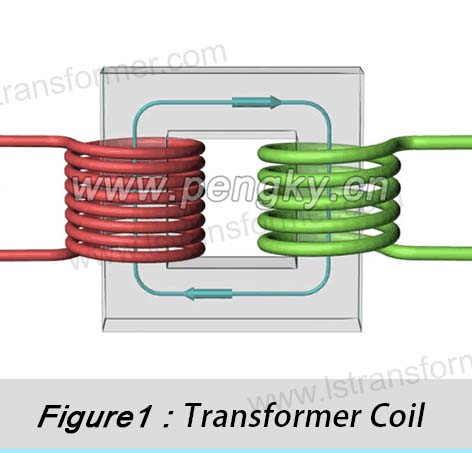

●Assessment of Coil Quality and Turns:

The no-load voltage is closely related to the number of turns in the transformer’s coils. By measuring the no-load voltage, one can check whether the number of turns in the coils is correct and whether the winding process meets the required standards. This helps assess the manufacturing quality and consistency of the coils.

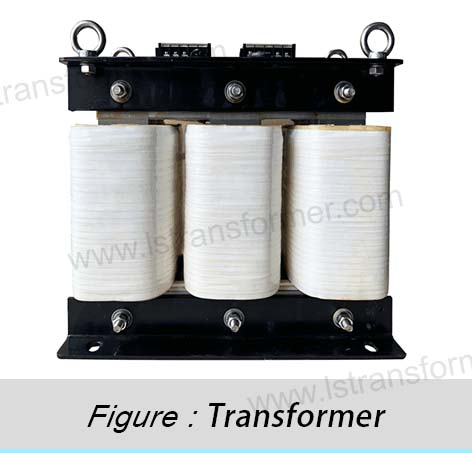

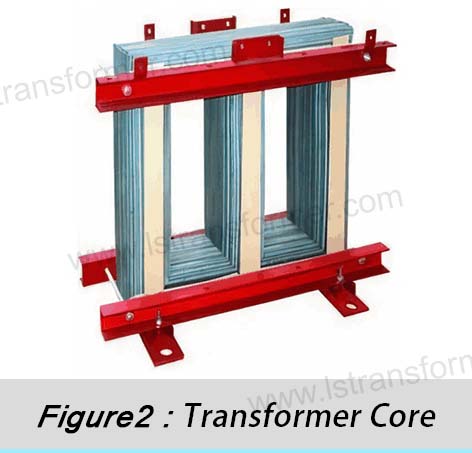

●Evaluation of Core Electromagnetic Performance:

The no-load current is the vector sum of the core loss current and the magnetizing current, and its magnitude depends on the core’s electromagnetic performance. By measuring the no-load current, one can assess the magnetic permeability, hysteresis losses, and eddy current losses of the core material, thereby determining whether the core material and processing meet the required standards.

●Inspection of Assembly Quality:

The no-load current is also influenced by factors such as the number of turns in the transformer coils, short-circuit conditions, and non-magnetic gaps in the magnetic circuit during the assembly process. Measuring the no-load current can help identify issues in the assembly process, such as coil short-circuits or non-magnetic gaps in the magnetic circuit, ensuring the quality of the assembly and the operational performance of the transformer.

●Assessment of Core and Coil Losses:

By measuring the no-load current, one can calculate the core loss current and the magnetizing current, thereby assessing the core losses and the magnetizing performance of the transformer coils. This is crucial for optimizing transformer design and improving energy efficiency.

●Evaluation of Overall Transformer Performance:

The results of measuring the no-load voltage and no-load current provide a comprehensive reflection of the quality of the transformer’s coils, core, and assembly process. These measurements allow for a thorough evaluation of the transformer’s overall performance, ensuring that it operates in a good working condition and reliability during actual operation.

●Provision of Benchmark Data for Subsequent Testing and Maintenance:

The results of no-load voltage and no-load current measurements can serve as benchmark data for subsequent testing and maintenance. During the operation and maintenance of the transformer, regular measurement of no-load characteristics can be compared with benchmark data to identify and address potential issues in a timely manner, ensuring the long-term safe and reliable operation of the transformer.

In summary

By measuring the no-load voltage and no-load current, one can gain a comprehensive understanding of the transformer’s design and manufacturing quality, assess its electromagnetic performance and operational status, and provide a scientific basis for optimizing design, improving manufacturing processes, ensuring assembly quality, and performing effective maintenance. Accurate no-load characteristic measurements are crucial for ensuring transformer performance and reliability, contributing to the overall quality and operational efficiency of the transformer.
