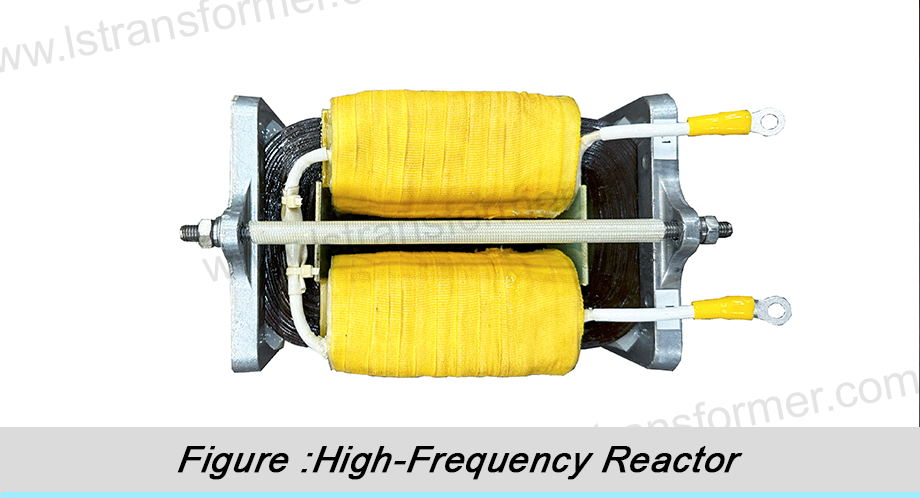

Reactors are essential reactive power compensation devices in power systems. The choice of cooling method directly impacts their performance and lifespan. With the development of power electronics and the growing demand for high-capacity reactors, water cooling systems have gained significant attention due to their highly efficient heat dissipation capabilities. This article provides an in-depth analysis of the technical advantages and limitations of using water cooling systems for reactors, assisting power engineers and procurement decision-makers in making informed choices.

Content

1. Basic Principles and Operation of Water Cooling Systems

Water cooling systems leverage water's high specific heat capacity (4.18 kJ/kg·K) and high thermal conductivity (0.6 W/m·K) to achieve efficient heat exchange. The system primarily consists of a water pump, heat exchanger, cooling pipes, temperature sensors, and a control unit, forming a closed-loop circuit. Deionized water, as the coolant, flows through dedicated cooling channels inside the reactor windings, absorbs heat, increases in temperature, and then passes through an external heat exchanger to dissipate the heat into the environment or an auxiliary cooling system.

Compared to traditional natural air convection cooling, water cooling systems improve heat transfer efficiency by 30-50 times. This stems from the superior thermophysical properties of water: its density is about 800 times that of air, its specific heat capacity is 4 times that of air, and its dynamic viscosity at 40°C is only about 10 times that of air. These characteristics allow characteristics allow water to carry more heat per unit time, enabling a more compact thermal design.

Table 1: Comparison of Thermophysical Properties of Water vs. Air (20°C, 1 atm)

System design must adhere to international standards likeIEC 60076-2 and IEEE C57.12.00, ensuring the cooling water resistivity is maintained within 1-10 MΩ·cm to prevent electrochemical corrosion. Typical operating pressure is 2-4 bar, with flow velocity controlled at 1-2 m/s to balance cooling efficiency and pump power loss. Temperature control uses PID algorithms to keep winding hot-spot temperatures below 90°C (Class H insulation) or 110°C (Class F insulation).

2. Technical Advantages of Water-Cooled Reactors

● Superior Heat Dissipation and Increased Power Density

Water cooling systems canreduce reactor volume by 40-60% while maintaining the same capacity.In high-capacity applications above 10 MVar, traditional air-cooled reactors often require multiple units in parallel due to heat dissipation limits, whereas a single water-cooled unit can suffice. For example, ABB's WCT series water-cooled reactors show a 35% reduction in weight and a 50% reduction in footprint compared to air-cooled models of the same capacity.

This compactness arises from two mechanisms: First, efficient heat transfer from water allows windings to be designed with higher current density (water cooling can achieve 6-8 A/mm² vs. 3-4 A/mm² for air cooling). Second, it eliminates the need for external cooling fins.Physically, heat dissipation capacity Q can be expressed as:

Q = h · A · ΔT

Where h is the heat transfer coefficient (W/m²K),
A is the contact area (m²),
ΔT is the temperature difference (K).

The h value for water cooling systems can reach 5000-10000 W/m²K, compared to only 50-100 W/m²K for forced air cooling. This means that under the same ΔT, a water cooling system requires only 1/50th of the contact area to achieve equivalent heat dissipation.

● Significant Noise Reduction

Water-cooled reactors maintain sound pressure levels below 65 dB, which is 15-20 dB lower than air-cooled models. This makes them particularly suitable for urban substations and installations near residential areas. Noise reduction comes mainly from three aspects:firstly, the elimination of mechanical vibration from cooling fans;secondly, the damping effect of water absorbing winding vibration energy;thirdly, the removal of air turbulence noise.

Acoustic performance complies with ISO 3744 standards. Measurements taken at 1 meter for a typical 500 kVar water-cooled reactor show that the main noise energy is concentrated in the 100-400 Hz frequency band, with octave band sound pressure levels all below the NR-60 curve requirements. This characteristic makes water cooling systems easier to pass environmental acceptance checks, reducing the risk of community complaints.

● Strong Environmental Adaptability and Long Maintenance Intervals

The closed-loop water cooling system keeps the internal environment of the reactor clean and dry, preventing dust accumulation and moisture ingress. In coastal, desert, or industrially polluted areas, the fins of air-cooled reactors are prone to clogging by salt spray, sand, or chemicals, leading to an annual degradation rate of heat dissipation efficiency of 5-8%. In contrast, the water cooling system isolates the internal environment via the heat exchanger, allowing maintenance cycles to be extended to 5-8 years.

Regarding temperature stability, water cooling systems limit daily winding temperature fluctuations to within ±5 K, whereas air-cooled systems can experience variations up to ±15 K due to ambient temperature changes. This stability reduces insulation material fatigue caused by thermal stress, extending equipment life. Experimental data indicates that under the same load conditions, the insulation aging rate of water-cooled reactors is only one-third that of air-cooled ones.

3. Technical Challenges and Limitations of Water Cooling Systems

● System Complexity and Initial Investment Cost

The initial cost of water-cooled reactors is 25-40% higher than air-cooled versions, primarily due to three factors:first, precision-manufactured copper tube windings; second, stainless steel or titanium alloy heat exchangers; third, auxiliary equipment including variable frequency pumps, deionization units, and monitoring systems.Taking a 380V/600kVar reactor as an example, the additional cost breakdown for the water cooling system is as follows:

Table 2: Additional Cost Analysis for Water Cooling System

System complexity is also reflected in installation requirements,needing dual water supply guarantees (N+1 redundancy) and leak detection devices. Pipe installation must maintain a 0.5-1% slope to ensure degassing, and all welded joints require helium mass spectrometer leak testing (sensitivity up to 1×10⁻⁹ mbar·L/s). These requirements increase engineering implementation difficulty and commissioning time.

● Critical Water Quality Management Requirements

Cooling water resistivity must be continuously monitored; dropping below 1 MΩ·cm can trigger electrochemical corrosion. In practice, water conductivity is influenced by:

μ = Σ(ci · λi)

Where μ is the solution conductivity (S/m),
ci is the ion concentration (mol/m³),
λi is the ionic molar conductivity (S·m²/mol).

Common ionic molar conductivity (λ) values: H⁺=349.8, OH⁻=198.6, Cl⁻=76.3, Na⁺=50.1. When Cl⁻ concentration exceeds 10 ppm, pitting corrosion may occur in stainless steel pipes.

The water treatment system typically includes four stages of purification:
Mechanical filtration (removing >5μm particles) → Reverse Osmosis (removing ~90% ions) → Electrodeionization (producing 15-18 MΩ·cm ultrapure water) → Nitrogen sealing (preventing CO₂ dissolution from reducing resistivity).

During operation, monthly checks are needed for pH (controlled between 7-8), dissolved oxygen (<50 ppb), and microbial content (<100 CFU/mL).

● Leakage Risk and Failure Consequences

Statistics indicate an annual leakage probability of about 0.5-1% for water cooling systems, primarily occurring at pipe joints (60%), welds (25%), and seals (15%). Leakage can cause dual hazards: first, water loss leading to cooling failure; second, water contacting live parts causing insulation failure.

Modern designs employ triple protection:
Primary: Winding epoxy resin vacuum impregnation forms a waterproof barrier.
Secondary: Leak detection electrodes (sensitivity 0.1 mL/min).
Tertiary: Emergency drainage channels.

For example, Siemens' SAC series utilizes patented "dry-type" water cooling technology, allowing safe operation at 70% capacity for up to 2 hours even in case of complete water loss.

4. Techno-Economic Comparison and Application Scenario Analysis

From a lifecycle cost perspective, water cooling systems prove more advantageous in specific scenarios. Using Net Present Value (NPV) analysis:

NPV = -C₀ + Σ[(ΔE · cₑ) + (ΔM) + (ΔL)] / (1 + r)^t

Where C₀ is the initial investment difference,
ΔE is the annual electricity saving benefit,
cₑ is the electricity price,
ΔM is the maintenance cost difference,
ΔL is the lifetime extension benefit, r is the discount rate.

When reactor capacity > 5 MVar and annual operation time > 6000 hours, the water cooling solution typically recovers the cost premium within 3-5 years.

Priority application scenarios:

Urban Substations: Space-constrained and noise-sensitive (ROI > 15%)

Offshore Wind Power: High salt fog environments (Maintenance costs reduced by 40%)

Data Centers: High heat density power distribution (Cooling energy consumption reduced by 30%)

Steel Rolling Mills with impact loads: Require fast thermal response (Temperature fluctuation reduced by 60%)

For rural substations, temporary power supply, or intermittent loads with < 2000 operating hours/year, air cooling remains more economical. Emerging technologies like evaporative cooling (e.g., using 3M Novec fluid) might become alternatives in the next 5-10 years, but currently cost 2-3 times more than water cooling.

Conclusion and Selection Recommendations

Recommendations

Water-cooled reactors represent the optimal solution for high-power-density applications, especially suited to modern smart grid demands for equipment miniaturization, quiet operation, and environmental adaptability. Although challenges exist regarding system complexity and higher initial investment, their excellent heat dissipation, low maintenance needs, and long service life often offset the initial premium in a full lifecycle assessment.

Selection decisions should be based on evaluating three key elements: Load characteristics (continuous/intermittent, linear/non-linear), environmental conditions (temperature, pollution level, space constraints), and economic parameters (electricity price, discount rate, expected operational life). It is recommended to prioritize the water cooling solution for projects > 2 MVar with an expected operation exceeding 10 years. Simultaneously, choose suppliers withIEC 62271-304 certification to ensure reliability.

With advancements in digital twin and predictive maintenance technologies, the intelligent monitoring capabilities of water cooling systems are rapidly improving. Within the next 5 years, integrated "smart water cooling" systems featuring fiber optic temperature measurement, online water quality analysis, and adaptive cooling are expected to increase operational reliability to over 99.95%, further expanding their application in high-value power facilities.
