In power systems and industrial applications, transformer protection level and heat dissipation performance are two critical factors. With increasing global demands for equipment durability and environmental adaptability, high protection level transformers such as those rated IP66 are becoming more popular in the market. However, many engineers and purchasing decision-makers are asking: Does enhanced protection come at the cost of reduced cooling efficiency? This article explores this technical balance in depth, analyzes the interaction between protection class and thermal performance, and provides optimized solutions.

Content

1. International Protection Standards & Basic Principles of Heat Dissipation

The Ingress Protection (IP) code is an international standard defined by IEC 60529 that rates the degree of protection provided by electrical enclosures against solid objects and liquids. An IP66 rating indicates "complete protection against dust" and "protection against powerful water jets." This level of protection is essential for transformers exposed to harsh environments—such as coastal areas, industrial sites, or desert climates.

Transformer cooling relies mainly on three mechanisms:conduction, convection, and radiation. In naturally cooled oil-immersed transformers, heat is transferred through:

•Winding heating: I²R losses due to current flow through winding resistance

•Oil circulation: Hot oil rises to the top and releases heat to ambient air via radiators

•Surface dissipation: The enclosure transfers heat via convection and radiation with surrounding air

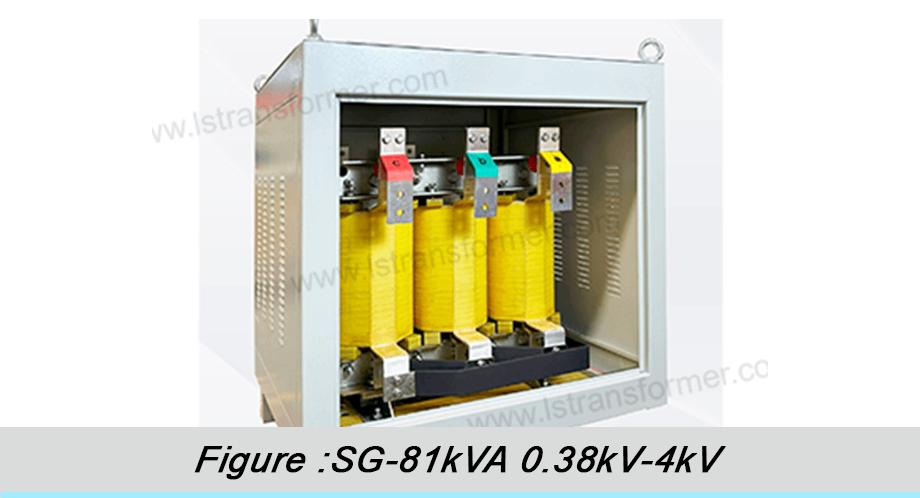

For dry-type transformers, cooling relies more on airflow between windings and the enclosure, along with direct surface dissipation. A high protection rating like IP66 primarily influences convection cooling.

2. Key Factors in How Protection Level Affects Cooling

● Enclosure Design & Surface Area

Achieving IP66 requires a highly sealed enclosure, which typically results in:

•Fewer ventilation openings, restricting free airflow

•Thicker protective layers increasing thermal resistance

•Use of sealed gaskets and special structures blocking natural convection paths

These design changes directly impact traditional cooling methods. For example, a standard IP23 transformer may achieve about 60% of its cooling through natural convection from louvres, whereas an IP66 unit must rely entirely on conduction through the casing and surface radiation.

● Material Selection & Thermal Conductivity

To meet IP66 requirements, manufacturers often use materials such as:

Material choice affects the thermal resistance (R‑value). According to Fourier’s Law:

Q = k·A·(ΔT) / d

Where:

•Q = Heat flow (W)

•k = Thermal conductivity (W/m·K)

•A = Heat transfer area (m²)

•ΔT = Temperature difference between inner and outer surfaces (K)

•d = Material thickness (m)

● Temperature Gradient & Thermal Balance

Increasing the protection level changes the thermal balance. Based on energy conservation:

P_loss = P_conv + P_rad + P_cond

Here, total dissipated power must equal total loss power. When convective cooling (P_conv) decreases due to sealing, compensation must come from increased surface area (raising P_rad) or better conductive materials (raising P_cond).

3. Engineering Solutions & Optimized Designs

Modern transformer designs have evolved various methods to balance high protection levels with effective cooling. Through structural optimization, smart cooling systems, and advanced materials, modern IP66 transformers can achieve efficient cooling without compromising sealing integrity. Below are detailed engineering approaches and their working principles:

● Enhanced Heat Dissipation Structures

Special structural designs help compensate for lost natural convection in sealed IP66 units:

•Corrugated tank / finned structures – Increase radiating surface area; e.g., corrugations can boost effective area by 30–50%, improving heat dissipation per Fourier's law.
Data shows such designs reduce top-oil temperature rise by 5K–8K compared to flat-walled tanks under identical loss conditions.

•Internal heat pipes – Utilize phase-change materials to efficiently transfer efficiently transfer internal heat to the outer shell. Heat pipes offer equivalent thermal conductivity 5–10 times that of copper, reducing hotspot temperatures hotspot temperatures by 10°C–15°C while maintaining IP66 seal.

•Directed cooling channels – Designed internal air paths combined with breathable waterproof membranes (e.g., ePTFE) allow limited airflow inside the sealed shell, enhancing convective efficiency ~20%.

● Intelligent Cooling Systems

For high-power or high-temperature environments, passive cooling alone may be insufficient:

•Forced-air cooling – Integration of dust/waterproof fans (e.g., IP68-rated motors) enhances forced convection. Example: A 2000 kVA dry-type transformer with fans can reduce winding temperature rise from 60K to 45K (~25% drop), based on increased air velocity raising convective coefficient h ∝ v^0.8.

•Liquid cooling loops – Fully sealed coolant (mineral oil or silicone fluid) circulates via a pump past hot components, then cools externally. Liquids' higher specific heat capacity enables hotspot reductions over 20K, maintaining IP66.

•Thermal control coatings – High-emissivity (>0.9) coatings (e.g., ceramic paints) enhance radiative cooling (P_rad = εσAT⁴); tests show surface temp drops of 3K–5K.

● Materials Science & Process Advances

Materials greatly affect enclosure thermal resistance and overall cooling:

•Metal matrix composites – e.g., AlSiC, thermal conductivity 180–200 W/m·K (close to pure aluminum), yet stronger, allowing thinner walls and improved cooling.

•Graphene-enhanced materials – Adding graphene to polymers or metals boosts thermal conductivity 3–5×; e.g., modified plastic conductivity increases from 0.2 to 1.5 W/m·K, lowering surface temps by 8K–10K.

•Vacuum insulation technology – Uses vacuum layers internally to block unwanted heat paths, plus high-conductivity thermal grease (>5 W/m·K) between case and heatsinks lowers interface resistance, boosting system efficiency 15–20%.

Summary of Improvements (Example: 2000 kVA Oil-Immersed Transformer)

With these measures, IP66 transformers not only offset the cooling limitations imposed by sealing but can even surpass conventional designs thermally. Users can select combinations based on budget and environment—e.g., “corrugated tank + forced air” for hot regions or “graphene casing + heat pipes” for corrosive settings.

4. Practical Applications & Performance Validation

Engineering practice confirms that well-designed IP66 transformers achieve operating temperatures comparable to lower-protection units, though special design considerations apply:

Case Study: Offshore Wind Farm Transformer

Typical parameter comparison:

These figures show that although the IP66 version runs slightly warmer, it stays within design margins, maintaining reliability and lifespan while drastically cutting maintenance needs.

5. Selection Guidelines & Misconceptions Clarified

Based on common user concerns, we recommend:

● Correct Selection Principles Selection Principles:

•Prioritize Environment Assessment — Coastal, dusty, or chemical-heavy sites demand higher IP ratings.

•Consider Load Profile —Cyclic loads tolerate slightly higher temps than continuous full load.

•Evaluate Lifecycle Cost —High IP transformers cost 20–30% more initially but save significantly on maintenance.

● Common Myths Debunked:

•“IP66 always causes overheating.” → Modern designs resolve this effectively.

•“All environments need IP66.” → Using IP66 indoors in clean spaces wastes resources.

•“Slightly higher temperature means shorter lifespan.” → Within ratings, a 5–8K rise has minimal impact on insulation life.

Conclusion & Future Trends

High protection levels such as IP66 do pose challenges to traditional transformer cooling. Yet, through innovative design and advanced materials, modern units successfully balance both key parameters. Future trends include:

1.Smart Thermal Management — Integrated IoT sensors monitor and adjust cooling in real time.

2.Biomimetic Cooling Structures — Nature-inspired designs (e.g., honeycomb patterns) optimize dissipation optimize dissipation.

3.New Material Applications — Commercial use of nanofluid cooling, superconducting materials, etc.

When selecting a transformer, protection level and cooling performance should not be seen as opposing choices, but rather as technical parameters requiring systematic evaluation. Through professional engineering and correct selection, users gain superior environmental resilience and reliable thermal performance.

For project-specific requirements, consult professional transformer manufacturers with detailed operating environment data and load profiles for optimized equipment solutions. Amid climate change and increasingly complex industrial environments, demand for high‑protection transformers will continue growing, driving ongoing innovation in cooling technology.
