Transformers are essential components in power systems, and their operating efficiency directly impacts energy losses and operational costs across the entire grid. In transformer design and operation, the choice of cooling method is a critical factor—not only does it influence equipment lifespan and reliability, but it also significantly affects operating efficiency. This article explores howdifferent cooling methods such as ONAN, ONAF, and OFAF impact transformer performance, analyzes the underlying thermodynamic principles, and provides data to help electrical engineers and procurement decision-makers make more informed choices. Globally, with rising energy efficiency standards (such as IEC 60076, IEEE C57.12.00, etc.), understanding the relationship between cooling methods and transformer efficiency transformer efficiency has become increasingly important.

Content

1. Basic Principles: Cooling and Efficiency in Transformers

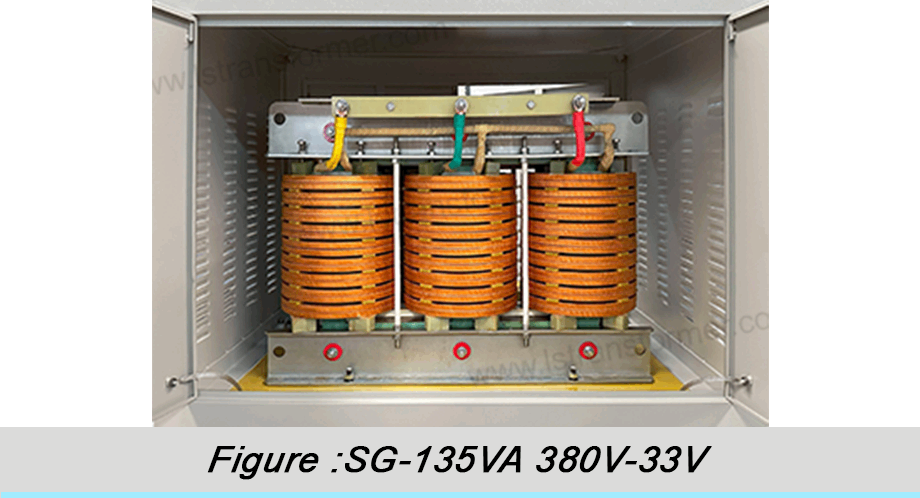

During operation, transformers generate two main types of losses: load losses (copper loss) and no-load losses (iron loss). These losses ultimately manifest as heat. If not dissipated promptly, this heat can cause winding and core temperatures to rise, thereby reducing overall transformer efficiency.

The physical relationship between temperature and efficiency is expressed by the formula:

η= (Pout / (Pout + Ploss))×100%

Where:
• η = Transformer efficiency
• Pout = Output power
• Ploss = Total losses (including copper and iron losses)

As temperature increases, winding resistance rises, leading to higher copper loss (I²R). According to International Electrotechnical Commission (IEC) studies, for every 10°C temperature increase, copper loss rises by approximately 3–5%. Prolonged high-temperature operation also accelerates insulation material aging. Therefore, an effective cooling system helps maintain high efficiency by controlling temperature rise.

●Classification of Cooling Methods (Based on IEC 60076 Standard):

Table 1: Main Transformer Cooling Methods Based on IEC Standards

2. Impact Mechanisms of Different Cooling Methods on Efficiency

● ONAN (Oil Natural Air Natural) Efficiency Characteristics

ONAN is the most common cooling method for small to medium-sized transformers, relying on natural convection of oil and air for heat dissipation. Its efficiency traits include:

• Higher efficiency at low loads:

Within the 30–60% load range, ONAN transformers typically achieve optimal efficiency. This occurs because natural convection avoids additional energy consumption from fans or pumps, and lower temperatures reduce insulating oil aging rates.

• Significant efficiency Significant efficiency drop under high loads:

When loads exceed 70%, thermal accumulation becomes noticeable. Experimental data show that at 100% load, ONAN transformers experience a 15–20°C greater temperature rise compared to ONAF, increasing copper loss by 4–7% and decreasing efficiency by 0.3–0.5 percentage points.

Case example: A 10 MVA ONAN transformer operates at 99.1% efficiency under 50% load but drops to 98.6% at full load. This variation results in significant annual energy consumption differences.

● ONAF (Oil Natural Air Forced) Efficiency Optimization

ONAF enhances heat dissipation through added fans, with efficiency characteristics including:

• Broader peak efficiency range:

After fan activation, heat dissipation capacity improves by 30–50%, enabling the transformer to maintain peak efficiency within the 60–85% load range. IEEE test data indicate that ONAF transformers outperform comparable ONAN units by 0.2–0.3% at 80% load% load.

• Fan energy consumption considerations:

Each fan typically consumes 0.5–2 kW. Although auxiliary power usage increases, reduced copper loss at high loads generally compensates for this extra draw. Intelligent control systems optimize energy use by activating fans based on temperature thresholds.

Heat balance equation:

Qpro = Qrad + Qair

Where:
• Qpro = total generated heat
• Qrad = radiated heat
• Qair = convective heat dissipation (including fan-enhanced portion)

Forced convection notably increases Qair, lowering overall temperature rise. Tests confirm that at 40°C ambient temperature, ONAF maintains top-oil temperatures 10–15°C lower than ONAN.

3. Advanced Cooling Technologies Cooling Technologies and Efficiency Breakthroughs

● OFAF (Oil Forced Air Forced) Systems

OFAF combines oil pumps and fans, achieving efficient cooling via dual forced circulation:

• Stable efficiency levels:

Even under 100% load, temperature rise remains below 55K (the IEC 60076 standard limit is 60K). European grid measurements reveal that OFAF units achieve 0.4–0.7% higher efficiency compared to ONAF in the 90–100% load zone.

• Oil streaming electrification effect:

Maintain oil velocity between 0.3–0.5 m/s per IEEE Std C57.93; excessive flow rates may cause electrostatic buildup, adding unwanted losses. Modern designs incorporate variable-frequency oil pumps that adjust flow according to load, optimizing energy efficiency.

● Evaporative Cooling & New Insulating Liquids

Cutting-edge technologies like fluorocarbon evaporative cooling leverage phase-change latent heat for superior heat transfer:

• Phase change cooling efficiency:

Latent heat values can be 5–8 times those of mineral oils, allowing similarly rated transformers to be 20–30% smaller while cutting no-load losses over 15%. Pilot projects in Singapore demonstrate Singapore demonstrate average yearly efficiencies reaching 99.3%.

• Eco-friendly insulating liquids:

Natural ester oils (e.g., soybean-based) offer better oxidation stability than mineral oil, permitting higher operating temperatures without compromising service life. NIST research indicates these esters reduce cooling system energy requirements by 15–20%.

4. Optimization Strategies for Improved Efficiency

● Smart Cooling Control Technology

Modern transformers utilize IoT sensors and adaptive control systems to enhance cooling efficiency:

• Dynamic load tracking:

Predicts temperature curves using real-time data, proactively adjusting cooling equipment. Systems like Alstom’s SmartCool reportedly cut annual electricity usage by 12–18%.

• Weather-responsive control:

Adjusts cooling strategies based on forecasts—pre-cooling during cooler periods reduces peak cooling demands.

● Maintenance Impacts on Efficiency

System condition directly affects heat dissipation effectiveness:

• Oil quality management:

Acid values exceeding 0.1 mg KOH/g (per IEC 60296) considerably degrade thermal conductivity. Routine filtering keeps oil conductivity in the ideal 0.11–0.13 W/m·K range.

• Radiator cleanliness:

Dust accumulation can decrease radiator efficiency by 20–30%. Annual infrared thermographic inspections help ensure clear heat dissipation paths.

5. Influence of Global Standards & Energy Regulations

Energy efficiency standards worldwide are driving innovation in cooling technology:

•EU Regulation No 548/2014: Mandates 10–20% reductions in no-load losses for medium-voltage transformers, encouraging advanced cooling solutions.

•U.S. DOE 2016 Standards: Impose stricter load loss criteria for distribution transformers, promoting adoption of newer methods like evaporative cooling.

•China GB 20052-2020: Raises minimum efficiency thresholds for oil-immersed transformers by 2–3%, incentivizing smart cooling integration.

Conclusion

Selecting a transformer cooling method involves balancing efficiency, cost, and reliability. From ONAN to OFAF and emerging technologies like evaporative cooling, each approach offers unique benefits suited to specific applications. Understanding the thermodynamics behind each method—combined with intelligent controls and proper maintenance—can substantially improve transformer efficiency and reduce lifecycle costs.

Amidst growing global emphasis on energy conservation (e.g., Paris Agreement targets), innovations in cooling technology will continue shaping the transformer industry. We recommend users evaluate load profiles, environmental conditions, and total ownership costs when selecting cooling options, consulting specialized engineers for thermal design and optimization as needed.
