In the global industrial electrical equipment market, transformers, as the core components of power systems, have seen their protection level become a key factor in product selection by users. With increasingly stringent safety standards from organizations such as the International Electrotechnical Commission (IEC) and the Institute of Electrical and Electronics Engineers (IEEE), optimizing transformer structural design to enhance protection performance has become a major challenge for manufacturers and engineers. This article analyzes four dimensions—material selection, sealing technology, thermal balance, and mechanical reinforcement—in accordance with international standards suchas IEC 60076 and IEEE C57.12.00.It also includes key parameter comparison tables and thermal resistance calculation formulas to provide practical solutions for overseas customers.

Содержание

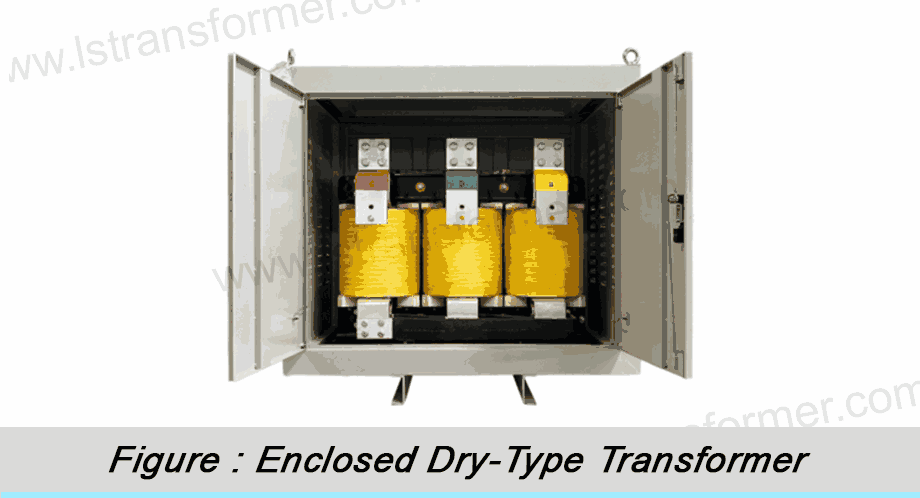

1. Efficient Sealing System: The Core Barrier Against Contaminant Ingress

● Multi-Level Sealing Structure Design

The second digit in transformer protection levels (e.g., IP65 or IP67) represents dustproof and waterproof performance, which is directly related to the sealing system. A triple-protection design using “shell O-ring + injection sealant + labyrinth flange structure” effectively addresses effectively addresses different penetration mechanisms:

•O-ring (EPDM material)fills metal flange seams through elastic deformation, with a compression rate controlled at 25–30% (according to IEC 60529 standard).

•Injection sealant (e.g., polysulfide type)forms a continuous film after curing, filling microscopic pores.

•Labyrinth flange extends the path of contaminants, allowing water droplets to fall off due to gravity.

Table 1: Comparison of Different Sealing Solutions on IP Ratings

● Dynamic Sealing Compensation Technology

Temperature cycling can cause material expansion differences that compromise sealing. Using a hybrid metal-composite flange(e.g., stainless steel outer ring + glass fiber reinforced nylon inner liner) leverages their differing coefficients of thermal expansion (stainless steel CTE≈17×10⁻⁶/°C, nylon CTE≈30×10⁻⁶/°C) to achieve temperature compensation. When temperatures rise, the nylon expands more significantly, enhancing radial pressure on the O-ring.

2. Thermal Management Optimization: Synergistic Design of Protection and Heat Dissipation

● Passive Heat Dissipation Channel Restructuring

Improving protection levels often leads to worsened heat dissipation (each increase in IP rating raises temperature rise by 15–20K). Solutions include:

•Corrugatedrugated Cooling Fins:

Increase surface area (by 40% compared to traditional designs) and induce turbulence, achieving heat dissipation efficiency dissipation efficiency comparable to IP23 under IP54 protection.

•Heat Pipe Embedded Enclosure:

Copper heat pipes (thermal conductivity 398 W/m·K) are embedded into the shell, where internal working fluid evaporation removes heat, and external fins optimize convection.

● Thermal Resistance Network Calculation Model

Total thermal resistanceRtotal consists of three parts:

Rtotal=Rcond+Rconv+Rrad

Where conductive thermal resistanceRcond=kAL
L = thickness,k = thermal conductivity,A = cross-sectional area.

For example, using nanofluids (containing Al₂O₃ particles) in typical oil-immersed transformers can improve the k-value by 22%, reducing hot spot temperature by 8–12°C under IP65 conditions.

3. Mechanical Reinforcement Structure: Engineering Strategies Against Physical Impact

● Anti-Shock Frame Design

Key measures to meet IEC 60068-2-27 mechanical shock test requirements (peak acceleration 15g):

•Spatial Truss Structure:

Replacing traditional planar reinforcement with a 3D pyramid truss disperses impact energy along multiple paths. Simulations show a 63% reduction in deformation under 50J impact.

•Composite Sandwich Panel:

A “steel-polyurethane foam-steel” sandwich structure uses foam core material to absorb vibration energy (loss factor tan δ > 0.3).

● Seismic Connection Technology

Developed multi-degree-of-freedom buffer joints compliant with IEEE 693 seismic standards:

•Horizontal Direction: Uses disc spring sets (non-linear stiffness coefficient).

•Vertical Direction: Employs hydraulic dampers (damping ratio ζ = 0.25).

•Testing confirms structural integrity under 0.3g seismic acceleration.

4. Environmentally Adaptive Materials: Building Protection from the Molecular Level

● Surface Nano-Coating Technology

Plasma spraying creates an Al₂O₃-TiO₂ nano-composite coating (thickness 80–120 μm) on the enclosure surface, achieving:

•Contact angle > 150° (superhydrophobic effect).

•No corrosion after 2000 hours of salt spray test (IEC 60068-2-52).

•Surface resistivity > 10¹² Ω (suppresses electrostatic dust accumulation).

● Biological Protection Treatment

For transformers used in tropical regions, antibacterial silicone rubber (with Ag⁺ ions) disrupts microbial cell membranes, reducing mold growth by 99% (tested per ASTM G21 standard).

Заключение

Enhancing transformer protection levels is a systems engineering challenge involving multiple physical fields. By applying the structural design methods outlined in this article, manufacturers can elevate product protection by 1–2 IP ratings without significantly increasing costs (approximately 15–20%). When selecting transformers, users are advised to request the following from suppliers in addition to conventional parameters:

1.IEC 61439 series certification documents.

2.Third-party protection level verification reports verification reports.

3.Thermal-mechanical joint simulation data.

With the future implementation of new standards like IEC 62933, modular protection designs will become an industry trend, ensuring higher reliability for transformers in extreme environments extreme environments.

Table 2: Improvement Effects of Structural Optimizations on Key Parameters
