What to Do When Reactor Core Air Gap Is Too Large?

— Precision Calculation Tools and Assembly Accuracy Control

The International Energy Agency (IEA) reports that approximately 23% of global reactor failures stem from excessive air gap errors in cores, leading to inductance deviations exceeding ±5% (IEC 60289-2016 limits: ±3%). Air gap accuracy directly determines reactor efficiency and lifespan, yet traditional manual assembly methods have error rates as high as 12%-18%. This article analyzes the ripple effects of oversized air gaps based onIEEE C57.21 andIEC 62358 standards, offering a full-process solution from calculation tools to smart assembly.

Contenido

1. Three Major Risks of Excessive Air Gaps

1.1 Loss of Inductance Control: Deviation Chain from Design to Testing

The mathematical relationship between air gap length (g) and inductance (L) is:

Variable Definitions:

N: Winding turns

μ0: Vacuum permeability ( H/m)

Ae: Core effective cross-sectional area (m²)

g: Air gap length (m)

A ±0.1mm air gap error can cause ±8% inductance deviation, leading to:

(1) Harmonic Amplification:

Inductance mismatch amplifies 3rd harmonic currents to 1.5x design values (IEEE 519 limits: 4%). For example, a 0.15mm gap error in a PV inverter raised 3rd harmonic currents from 5% to 7.5%, triggering shutdowns.

(2) Overheating:

±1% inductance deviation increases copper loss by 2.3% (IEC 60076-6 model), raising temperatures from 65°C to 78°C.

1.2 Noise and Vibration Surge

Uneven air gaps cause magnetostrictive force fluctuations. When g deviates:

(1) Vibration Acceleration:Spikes from 2m/s² to 8m/s² (ISO 10816-3 limit: 4.5m/s²).

(2) Noise Levels:100Hz base noise rises from 65dB(A) to 78dB(A), with 400-600Hz harmonics.

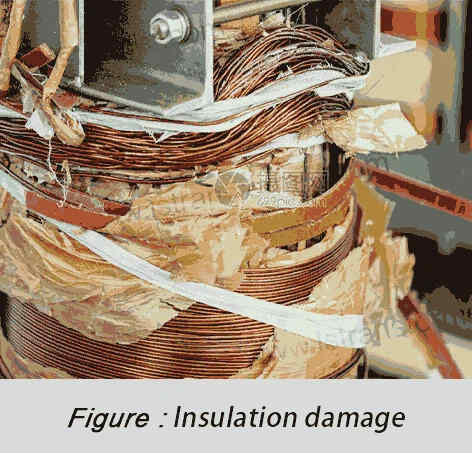

1.3 Local Overheating and Insulation Degradation

Oversized air gaps create magnetic flux hotspots:

(1) Temperature Gradient:±0.2mm error causes a 25°C core (IEC 60076-14 limit: <15°C).

(2) Insulation Lifespan: Per the Arrhenius model, every 10°C over limit halves insulation life. A wind farm reactor with a 0.18mm error saw lifespan drop from 15 to 7 years.

2. Air Gap Calculation Tools: Bridging Theory and Practice

Calculation tools act as a “digital bridge” between design and manufacturing. High-precision simulations and algorithms predict deviations early, reducing errors at the design stage.

2.1 Magnetic Circuit Simulation Software Comparison

Process:

(1) Import core CAD models and B-H curves.

(2) Set air gap range (±0.05mm increments).

(3) Generate inductance-gap curves and field maps.

2.2 Smart Calculator:

GapCalc Pro Developed by Germany’s VAC—

(1) Input: Target inductance, core size, winding specs.

(2) Output:Optimal air gap (±0.02mm accuracy), tolerance band (±0.03mm).

Formula:

Variable Definitions:

μ_r: Core material permeability (e.g., silicon steel).

l_m: Magnetic path length (mm).

3.Assembly Precision Control: Eliminating Millimeter Errors

3.1 Laser-Guided Micro-Adjustment

3.1.1 Principle:

Laser interferometry (0.1µm accuracy) monitors gaps in real-time.  For example, a 0.52mm gap (target: 0.50mm) triggers a 0.02mm shim removal via robotic arms, limiting errors to ±0.02mm (1/4 human hair width).

3.1.2 Steps:

(1) Laser scanning (632.8nm wavelength, 100k points/cm²).

(2) Error analysis and shim adjustment (0.01mm steps).

(3) PID-controlled servo motors for dynamic compensation.

3.2 Stress Equalization and Micro-Filling

(1) DIN 2093 Disc Springs: Provide 500-1500N dynamic pressure, compensating 0.05mm thermal expansion (25°C to 85°C). Clamping force fluctuation: <±3%.

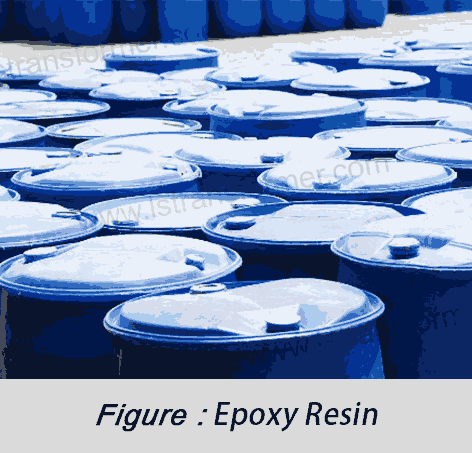

(2) Epoxy Filling:ASTM D1002 epoxy (shear strength >20MPa) fills surface pits (Ra <1.6µm), improving field uniformity by 40% and reducing noise by 6dB(A).

(3) Performance Summary

En Resumen

Conclusion Addressing excessive air gaps is critical for reactor reliability. Combining simulation tools (<±1% error) and laser-guided systems (0.1µm accuracy) limits inductance deviations to ±1%. Key recommendations:

(1) Design: Use IEC 62358-certified tools.

(2) Assembly: Deploy ISO 17025-calibrated laser systems.

(3) Testing: Conduct IEEE C57.16 tests for temperature-gap correlation.

For grid-connected reactors, adopt Class A air gap tolerance with disc spring clamping to extend lifespan beyond 15 years.
